Homac ASL 300 N AL 2-HOLE NEMA STACK LUG 300 6 INCH
- MPN: ASL 300 N
- UPC: 075114359122
- PPN: T-B-ASL 300 N
- UNSPSC: 39121409
CAD
$95.18
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

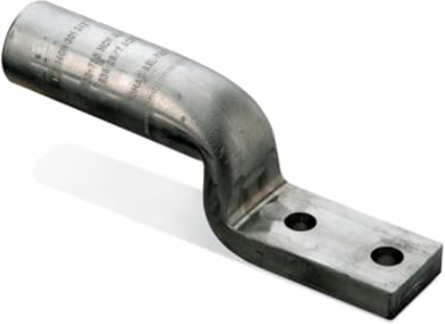

Aluminum Compression Terminal Stacking Lug, 2-Hole NEMA Stacking Lug,. Wire Size 300 kcmil, 266.8 kcmil, 150 MM2, 266.8 (18/1) ACSR, 350 Compact. Dies TH, 87H, 251, 470, 1, 12A. Length 6 inch, Pad 3 inch long x 1-11/32 inch wide x 11/32 inch thick, (2) 9/16 inch Diameter holes on 1-3/4 inch Centers. Oxide Inhibitor, Blue Cap. Dual Rated for use with Aluminum and Copper Conductors.
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Buy American Act (BAA) Compliant | Contact Manufacturer |
| Brand Name | Homac |
| Size | Length 6 inch |
| Material | Aluminum |
| American Recovery and Reinvestment Act (ARRA) Compliant | Contact Manufacturer |
|---|---|
| IGCC | 4543 |
| Connection | Compression |
| Wire Size | 300 kcmil , 266.8 kcmil , 150 mm2 , 266.8 (18/1) ACSR AWG , 350 kcmil |
| Insulation | None |
