Homac SAKM 2-48 TN AL COMP 1HOLE M SOCK LUG 2 TP 1/2
- MPN: SAKM 2-48 TN
- UPC: 783786748112
- PPN: T-B-SAKM 2-48 TN
- UNSPSC: 39121409
CAD
$29.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

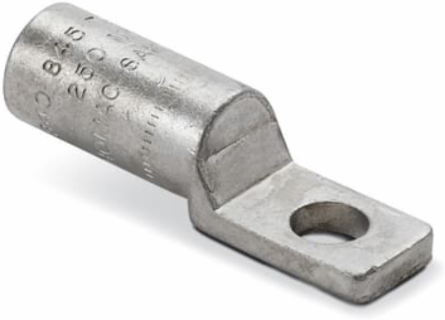

Tin-Plated Aluminum Meter Socket Lug - One-Hole - for 1/2 inch bolt, Wire Range #2 Stranded - Compressed, #2 and #1 Compact, #1 Solid. Installing dies 840, 845, TX, 76, 249, 11A. Length 3-1/8 inch. One Hole Pad 9/16 inch Diameter. Pad 1-9/32 inch long x 1/4 inch thick. Barrel 1-3/4 inch. Oxide Inhibitor. Gray Cap. Dual Rated for Aluminum and Copper Conductors
Specifications
Additional Information
- Application
- For Meter Pan and General Applications
- Connection Type
- Compression
- Insulation Material
- None
- Product Type
- Compression Lug One Hole Meter Socket
- Special Functions
- Marked with Conductor Sizes and Die References.
- Surface Finishing
- Tin Plated
Brand / LabelHomac
Effective Date20080619
Product NameELECTRICAL TERMINAL<1000V
Size3-1/4 inch
StandardsANSI C119.4
Wire Size#2 STR AWG#2 COMPR AWG
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4543 >> Wire connectors
