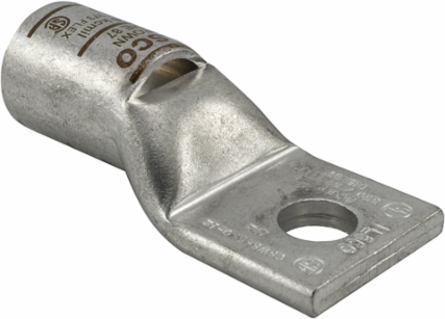

ILSCO CSWS-1-516 Surecrimp Copper Compression Lug, Conductor Size 1, 1 Hole, 5/16in Bolt Size, Standard Barrel, Sight Window, Tin Plated, UL, CSA
- MPN: CSWS-1-516
- UPC: 783669634372
- PPN: ILC-CSWS-1-516
CAD
$13.05
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Surecrimp Copper Compression Lug, Conductor Size 1, 1 Hole, 5/16in Bolt Size, Standard Barrel, Sight Window, Tin Plated, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
- Height
- 0.499 in | 12.6746 mm
- Weight
- 0.0379885493532923 lbs
Length1.83 in | 46.482 mm
Width0.673 in | 17.0942 mm
Voltage
- Voltage Rating
- 35 kV
Dimensions
- Barrel Length (IN)
- 0.625
- Dimension G (IN)
- 0.352
- Height BX (IN)
- 2.25
- Inside Diameter (IN)
- 0.359
- Length (mm)
- 46.482
- Mounting Hole Diameter (mm)
- 8.7122
- Outside Diameter (IN)
- 0.469
- Strip Length (mm)
- 17.4498
- Tang Length (mm)
- 22.225
- Tang Thickness (mm)
- 2.794
- Tang Width (mm)
- 17.0942
- Width BX (IN)
- 5
Barrel Length (mm)15.875
Dimension G (mm)8.9408
Height (mm)12.6746
Inside Diameter (mm)9.1186
Mounting Hole Diameter (IN)0.343
Mounting Hole Spacing (mm)0
Outside Diameter (mm)11.9126
Tang Length (IN)0.875
Tang Thickness (IN)0.11
Tang Width (IN)0.673
Weight BX (LB)1.285
Width (mm)17.0942
Testing Standards
- CSA File Number
- LR-29601
- NEBS Rating
- Level 3
- ROHS Indicator
- IND
- UL / CULUS Specification
- UL 486A/B Listed, UL 467 Listed
CSA StandardC22.2 No. 65-03
Prop65 ComplianceThis product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
UL Control Number453G
UL File NumberE6207
Additional Class Attributes
- Barrel Marking
- Ink
- Connecting Angle
- 180°
- Contains DE-OX®
- No
- ILSCOs Die Catalog Number
- ILD-37
- Mounting Hole Type
- Thru
- Number of Mounting Holes
- 1
- Slotted
- No
- Undrilled
- No
Barrel TypeStandard
ConnectionCompression
Flared EndNo
ILSCOs Die Index NumberI-37
Narrow TangNo
Sight WindowYes
Tang End ShapeSquare
Material and Finish
- Conductor Material
- Copper
- Material
- Copper
Connector FinishTin
Conductor Ranges
- Conductor Range CU Stranded (Primary, run, main, line)
- 1 Str
- Flex Conductor Range
- 2 G,H,I,K,M,DLO
Expanded Conductor Range1 Str - 6 Str
Additional Technical Specifications
- Conductor Type
- Flex, Stranded
General
- Bag Quantity
- 1
- Direct Burial
- Yes
- NEMA Code
- S-588-3
Carton Quantity DescriptionSTD PACK QTY 10
Dual RatedNo
UPC Code78366963437
Bolt and Screw Sizes
- Mounting Bolt/Stud Size
- 5/16
Color
- Color
- Silver
Color CodeGreen
Environment and Temperature
- Temperature Rating
- 90°C
