Homac

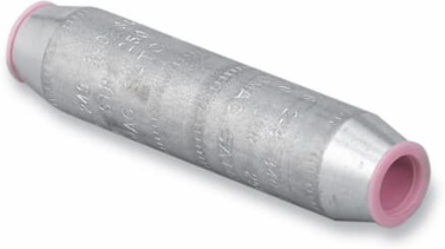

Homac 3010-2 TN AL COMP Splice 1/0 Strand TinPlated

AL COMP Splice 1/0 Strand TinPlated
  • MPN: 3010-2 TN
  • UPC: 783786953691
  • PPN: T-B-3010-2 TN
  • UNSPSC: 39121449

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$100.31/ EA

Description

High Voltage, Tin-Plated Aluminum Tapered Compression Splice for Aluminum and Copper, 1/0 Stranded, 4.5 inch Long. Installing Dies TX, 76, 249, 840, 11A. Center Stop. Oxide Inhibitor. Yellow Caps.

Specifications

Classifications

WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4669 >> Wire or cable compression splice

Additional Information

Brand / Label
Homac
Effective Date
20100122
Number of Conductors
2
Product Type
Compression Splice Service Entrance Insulated
Special Functions
Tapered Ends. Marked with Conductor Sizes and Dies References. Dual Rated for Aluminum and Copper Conductors. Yellow Caps, Oxide Inhibiting Compound. Center Stop.
Connection TypeCompression
Insulation MaterialNone
Product NameELECTRICAL CONNECTOR,>1000V
SizeLength 4.500 inch, Outside Diameter .906 inch
Surface FinishingTin-Plated

Ordering

Country of Origin
United States (US)
Selling Unit of Measureeach
