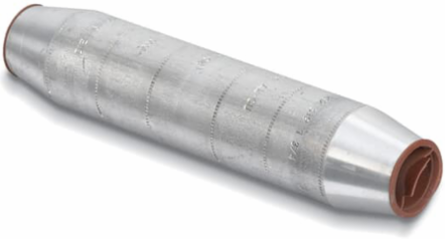

Blackburn ATC 3 TN Tin-Plated Aluminum Compression Splice #3 Stranded AL-CU, 2-3/4 Inch Long
- MPN: ATC 3 TN
- UPC: 783786697199
- PPN: T-B-ATC 3 TN
- UNSPSC: 39121449
CAD
$214.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Tin-Plated Aluminum Tapered Compression Splice, #3 Stranded AL-CU or #2 Solid AL-CU. Installing Dies 1/2, TQ, 6A, 163. Length 2-3/4 inch. Outside Diameter 17/32 inch. Oil Stop. Oxide Inhibitor. Orange Caps.
Specifications
Additional Information
- Application
- Tapered ends enable use in High-Voltage Applications up to 69kV.
- Connection Type
- Compression
- Insulation Material
- None
- Product Name
- ELECTRICAL SPLICE<1000V
- Size
- 2-23-32 inch long
- Standards
- ANSI C119.4
Brand / LabelHomac
Effective Date20080619
Number of Conductors2
Product TypeCompression Splice Tapered
Special FunctionsSolid center stop ensures proper cable insertion. Dual rated for use with Aluminum and Copper Conductors. All Splices marked with die references for easy installation. Connector bores coated with oxide inhibitor to prevent oxidation.
Surface FinishingTin-Plated
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4669 >> Wire or cable compression splice
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
