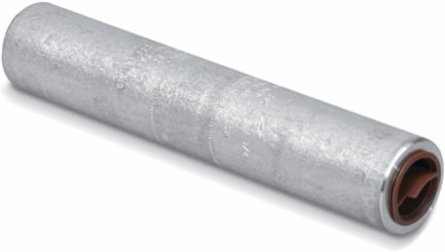

Blackburn AC 300 TN Tin-Plated Aluminum Compression Splice 5-3/4 Inch, 300 kcmil AL-CU
- MPN: AC 300 TN
- UPC: 783786691715
- PPN: T-B-AC 300 TN
- UNSPSC: 39121449
CAD
$92.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Tin-Plated Aluminum Compression Splice for Aluminum and Copper, 266.8-300 kcmil AL-CU, 266.8 (18/1) ACSR AL9CU. Dies TH, 87H, 251, 840, 470, 12A. Length 5-3/4 inch. Outside Diameter 1 inch. Oil Stop. Oxide Inhibitor. Blue Caps.
Specifications
Additional Information
- Application
- Cable Splice
- Connection Type
- Compression
- Insulation Material
- None
- Product Name
- ELECTRICAL SPLICE<1000V
- Size
- 5-3/4 inch long
- Standards
- ANSI C119.4
Brand / LabelHomac
Effective Date20080619
Number of Conductors2
Product TypeCompression Splice
Special FunctionsDual Rated for Aluminum or Copper Conductors. Prefilled with Oxide Inhibiting Compound.
Surface FinishingTin-Plated
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4669 >> Wire or cable compression splice
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
