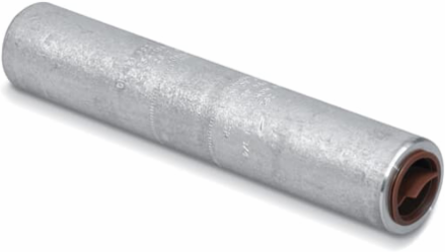

Blackburn AC 400 TN Tin-Plated Aluminum Compression Splice 2 Conductors 7-9/32 Inch Long

MPN: AC 400 TN
UPC: 783786691807
PPN: T-B-AC 400 TN
UNSPSC: 39121449

Spec sheet

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$109.19/ EA

Qty:

Loading add to cart quantity...

Description

Tin-Plated Aluminum Compression Splice for Aluminum and Copper, 397.5-400 kcmil AL9CU or 336.4 (26.7) 397.5 (18/1) ACSR. Dies 96, 472, 655, 705, 1 1/8-1, 13A. Length 7-9/32 inch. Outside Diameter 1-3/16 inch. Oil Stop. Oxide Inhibitor. Green Caps.

Specifications

Ordering

Country of Origin: United States (US)

Selling Unit of Measureeach

Additional Information

Application: Cable Splice

Connection Type: Compression

Insulation Material: None

Product Name: ELECTRICAL SPLICE<1000V

Size: 7-9/32 inch long

Standards: ANSI C119.4

Brand / LabelHomac

Effective Date20080619

Number of Conductors2

Product TypeCompression Splice

Special FunctionsDual Rated for Aluminum or Copper Conductors. Prefilled with Oxide Inhibiting Compound.

Surface FinishingTin-Plated

Classifications

WEEE Category: Product Not in WEEE Scope

IDEA Granular Category Code (IGCC)4669 >> Wire or cable compression splice
