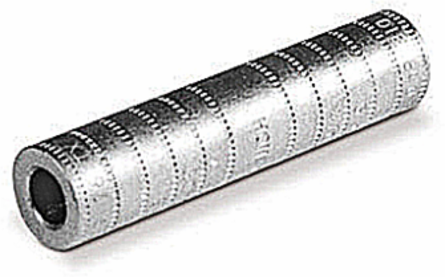

Blackburn SAC 500 TN Aluminum Compression Straight Splice 5-11/16 Inch Long, Dual Rated for 477-500 Conductor
Blackburn SAC 500 TN Aluminum Compression Straight Splice 5-11/16 Inch Long, Dual Rated for 477-500 Conductor
- MPN: SAC 500 TN
- PPN: T-B-SAC 500 TN
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$79.79/ EA
Description
Tin-Plated Aluminum Compression Straight Splice - Common Die Series, for Aluminum or Copper Conductors, Concentric 477-500, Compact 600, Installing Dies 106A, 300, 317, 1-5/16, 15A
Features
- Entire Conductor Range Installed by Six Common Dies to Reduce Die Inventory.
- Made from Aluminum for High Strength and Conductivity.
- Solid Center Stop Ensures Proper Cable Insertion.
- Dual-Rated for Use with Aluminum and Copper Conductors.
- Connector Bores Coated with Oxide Inhibitor to Prevent Oxidation.
- All Splices Marked with Conductor Sizes and Die References for Easy Identification.
- Meets or Exceeds ANSI C119.4 Specifications.
Specifications
Packaging
- Outer Quantity
- 25
- Weight Uom
- 0.52 lbs. Each
Outer Dimensions (inches)1x1x1
North American Specifications (UNSPSC)
- UNSPSC
- 39121449 Wire or cable compression splice
- Brand Name
- Blackburn
- Special Features
- Solid Center. Dual Rated. Oxide Inhibiting Compound. Marked with Conductor Sizes and Die References.
- Standard
- ANSI C119.4
- Connection
- Compression/Crimp
- Number Of Conductors
- 2
- Finish
- Tin-Plated
IGCC4669 Wire or cable compression splice
TypeAluminum Compression Straight Splice
ApplicationSplices designed for general UnderGround Applications
Size5-11/16 inches long
Conductor Range477-500 Concentric. 600 Compact
MaterialAluminum
InsulationNone
