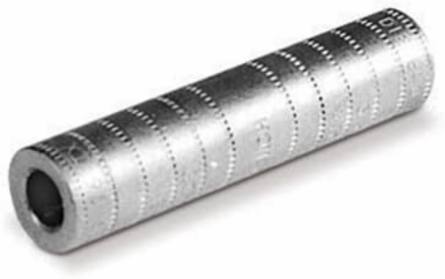

Blackburn SAC 750 TN Tin-Plated Aluminum Compression Splice, 7 Inch Length, Wire Range 700-750 kcmil
Blackburn SAC 750 TN Tin-Plated Aluminum Compression Splice, 7 Inch Length, Wire Range 700-750 kcmil
- MPN: SAC 750 TN
- UPC: 783786747955
- PPN: T-B-SAC 750 TN
- UNSPSC: 39121449
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$115.71/ EA
Description
Tin-Plated Aluminum Straight Splices - Wire Range 700-750 kcmil AL-CU. Installing Dies 140H, 301, 342, 724, 1, 1/2. Length 7 inch. Oil Stop. Oxide Inhibitor. Yellow Caps.
Specifications
Additional Information
- Application
- Splices designed for general UnderGround Applications
- Connection Type
- Compression
- Insulation Material
- None
- Product Name
- ELECTRICAL SPLICE<1000V
- Size
- 7 inches long
- Standards
- ANSI C119.4
Brand / LabelHomac
Effective Date20080619
Number of Conductors2
Product TypeCompression Splice
Special FunctionsSolid Center. Dual Rated. Oxide Inhibiting Compound. Marked with Conductor Sizes and Die References.
Surface FinishingTin-Plated
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4669 >> Wire or cable compression splice
