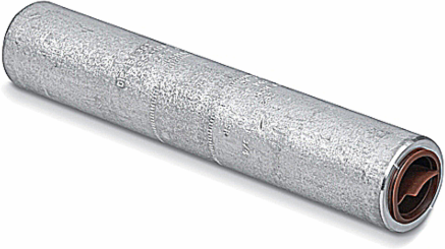

Blackburn AC 800-608 Aluminum Straight Compression Splice, 800 KCMIL, 8.550 Inch Long

MPN: AC 800-608
PPN: T-B-AC 800-608

Spec sheet

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$117.90/ EA

Qty:

Loading add to cart quantity...

Description

Aluminum Compression Splice for Aluminum and Copper, 800 KCMIL

Features

Made of Aluminum for High Strength and High Conductivity.
Solid Center Stop Ensures Proper Cable Insertion.
Dual-Rated for Use with Aluminum and Copper Conductors.
All Splices Marked with Conductor Size and Die Reference for Easy Identification.
Meets or Exceeds ANSI C119.4 Specifications. All Tin-Plated Splices are UL Listed.

Specifications

North American Specifications (UNSPSC)

UNSPSC: 39121449 Wire or cable compression splice

Brand Name: Blackburn

Special Features: Dual Rated for Aluminum or Copper Conductors. Prefilled with Oxide Inhibiting Compound.

Standard: ANSI C119.4

Connection: Compression/Crimp

Number Of Conductors: 2

Finish: Bare

IGCC4669 Wire or cable compression splice

TypeStraight Compression Splice

ApplicationCable Splice

Size8.550 inch long

Conductor RangeSide A 750 to 800 kcmil, Side B 636 (30/19) to 715.5 (54/7) ACSR

MaterialAluminum

InsulationNone

Packaging

Outer Quantity: 25

Weight Uom: 0.86 lbs. Each

Outer Dimensions (inches)13.375x8.25x7.875
