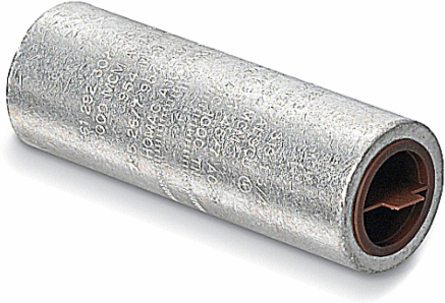

Blackburn ASC 4 TN Tin-Plated Aluminum Straight Compression Splice for #4 Conductors, 2 Inch
Blackburn ASC 4 TN Tin-Plated Aluminum Straight Compression Splice for #4 Conductors, 2 Inch
- MPN: ASC 4 TN
- PPN: T-B-ASC 4 TN
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$13.57/ EA
Description
Tin-Plated Aluminum Straight Compression Splice for Aluminum and Copper Conductors, #4 Stranded
Features
- Made of Aluminum for High Strength and High Conductivity.
- Solid Center Stop Ensures Proper Cable Insertion.
- Dual-Rated for Use with Aluminum and Copper Conductors.
- Prefilled with Oxide Inhibitor to Prevent Oxidation and Keep Out Moisture.
- All Splices Marked with Conductor Sizes and Die References for Easy Identification.
- Meets or Exceeds ANSI C119.4 Specifications. Splices with Tin-Plating are UL Listed through 1000 kcmil.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121449 Wire or cable compression splice
- Brand Name
- Blackburn
- Special Features
- Dual Rated for Aluminum or Copper Conductors. Prefilled with Oxide Inhibiting Compound. Solid Center Stop ensures porper Cable insertion.
- Standard
- ANSI C119.4
- Connection
- Compression/Crimp
- Number Of Conductors
- 2
- Finish
- Tin-Plated
IGCC4669 Wire or cable compression splice
TypeStraight Compression Splice
ApplicationCable Splice
Size2 inch
Conductor RangeConcentric #4
MaterialAluminum
InsulationNone
Packaging
- Inner Quantity
- 100
- Outer Quantity
- 500
- Weight Uom
- 0.03 lbs. Each
Inner Dimensions (inches)6x6x3.5
Outer Dimensions (inches)10.75x10x10
