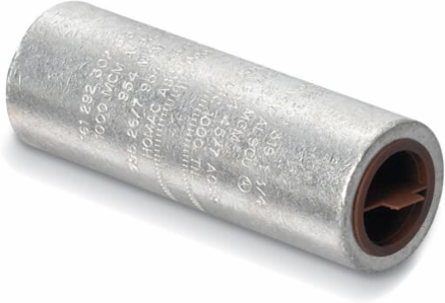

Blackburn ASC 400 TN Tin-Plated Aluminum Compression Splice 3-3/4 Inch 400 kcmil AL9CU
- MPN: ASC 400 TN
- UPC: 783786696031
- PPN: T-B-ASC 400 TN
- UNSPSC: 39121449
CAD
$86.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Tin-Plated Aluminum Compression Splice, 400 kcmil AL9CU UL listed, 397.5 kcmil, 336.4 (26/7) or 397.5 (18/1) ACSR. Installing Dies 96, 472, 655, 1, 1/8-1, 13A. Length 3-3/4 inch x 1-3/16 inch Outside Diameter. Oil Stop. Oxide Inhibitor. Green Caps.
Specifications
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4669 >> Wire or cable compression splice
Additional Information
- Application
- Cable Splice
- Connection Type
- Compression
- Insulation Material
- None
- Product Name
- ELECTRICAL SPLICE<1000V
- Size
- 3-3/4 inch
- Standards
- ANSI C119.4
Brand / LabelHomac
Effective Date20080619
Number of Conductors2
Product TypeCompression Splice
Special FunctionsDual Rated for Aluminum or Copper Conductors. Prefilled with Oxide Inhibiting Compound. Solid Center Stop ensures porper Cable insertion.
Surface FinishingTin-Plated
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
