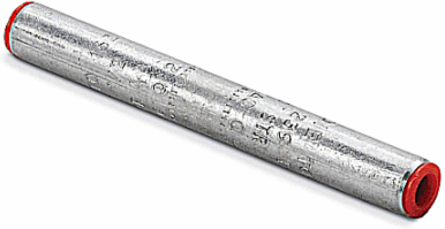

Blackburn 2183 Aluminum Compression Splice 10-3/8 Inch Long for 556.5 Stranded Conductors
- MPN: 2183
- UPC: 783786764051
- PPN: T-B-2183
CAD
$255.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Aluminum Full-Tension Compression Splices - For Aluminum Conductors, wire size Stranded 556.5, length 13 inch, installing dies - 243,TU,52,518,8A,BG.
Documentation & Downloads
Specifications
Packaging
- Outer Quantity
- 25
- Weight Uom
- 1.03 lbs. Each
Outer Dimensions (inches)1x1x1
North American Specifications (UNSPSC)
- UNSPSC
- 39121449 Wire or cable compression splice
- Brand Name
- Blackburn
- Special Features
- Prefilled with Oxide Inhibitor to prevent oxidation and keep out moisture. Designed to develop 90 percent or more of the conductors rated strength. Sleeves have an internal taper that acts as a funnel like entrance for easy insertion of conductors. Provides stress relief on the conductor strands upon compression. Marked with Conductor Size and Die Reference for Easy Identification
- Size
- 10-3/8 inch long
- Conductor Range
- 556.5 Stranded
- Material
- Aluminum
IGCC4669 Wire or cable compression splice
TypeAluminum Full-Tension Compression Splice for Aluminum Conductors
StandardANSI C119.4
ConnectionCrimp/Compression
Number Of Conductors2
InsulationNone
