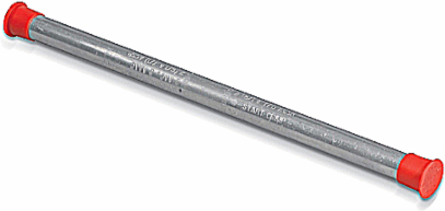

Blackburn MS 20 Aluminum Full-Tension Compression Splice 17-7/8 Inch for ACSR & Aluminum-Alloy Conductors
- MPN: MS 20
- UPC: 783786739967
- PPN: T-B-MS 20
CAD
$356.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Aluminum Full-Tension Compression Splices for ACSR and Aluminum-Alloy Conductors, wire size 2/0 AAC, 2/0 ACSR (6/1), 2/0 AAAC length 17-7/8 inch, installing dies - TM, 62, 11/16.
Documentation & Downloads
Specifications
Packaging
- Outer Quantity
- 25
- Weight Uom
- 0.56 lbs. Each
Outer Dimensions (inches)1x1x1
North American Specifications (UNSPSC)
- UNSPSC
- 39121449 Wire or cable compression splice
- Brand Name
- Blackburn
- Special Features
- Prefilled with Oxide Inhibitor to prevent oxidation and keep out moisture. Simplify hot line distribution construction and eliminate the separate splicing of ACSR core wires. Constructed from seamless Aluminum tubing, provides high conductivity. Sleeves have an internal taper that acts as a funnel-lie entrance for easy insertion of conductors and provides stress relief onthe conductor strans upon compression. Solid Barriers in the center of the sleeves ensure all-around distribution and penetration of the oxide inhibitor to all strands.
- Size
- 17-7/8 inches
- Conductor Range
- 20 AAC, 2/0 ACSR (6/1), 2/0 AAAC
- Material
- Aluminum
IGCC4669 Wire or cable compression splice
TypeAluminum Full-Tension Compression Splice For ACSR and Aluminum-Alloy Conductors
StandardANSI C119.4
ConnectionCrimp/Compression
Number Of Conductors2
InsulationNone
