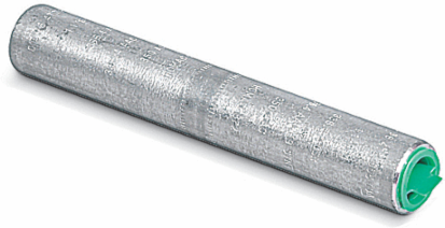

Blackburn 872 Aluminum Loop Compression Splices 7-1/2 Inch Long for ACSR 336.4 Conductors
- MPN: 872
- UPC: 783786769452
- PPN: T-B-872
CAD
$70.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Aluminum Loop Compression Splices, ACSR 336.4, AAC 336.4-350, length 7-1/2 inch, EEI die code - 13A, UT 5 type dies - TH (6), hydraulic dies - 96 (3), 96H (6), 472, 655.
Documentation & Downloads
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121449 Wire or cable compression splice
- Brand Name
- Blackburn
- Special Features
- All splices are marked with conductor size, installing die references, and compression locations. Pre-filled with oxide inhibitor to prevent oxidation and keep out moisture. Constructed from Aluminum for High Conductivity.
- Standard
- ANSI C119.4
- Connection
- Crimp/Compression
- Number Of Conductors
- 2
- Insulation
- None
IGCC4669 Wire or cable compression splice
TypeAluminum Loop Compression Splices
ApplicationFor ACSR, ACAR, AAAC 5005 abd AAC Conductors
Size7-1/2 inch long
Conductor Range336.4 ACSR/ACAR/5005/AAAC, 336.4-350 AAC
MaterialAluminum
Packaging
- Outer Quantity
- 25
- Weight Uom
- 55 lbs. per 100
Outer Dimensions (inches)8.6x6.8x7.5
