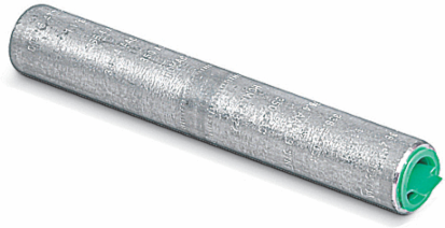

Blackburn 876 Aluminum Loop Compression Splices 7-1/2 Inch Long for ACSR/ACAR Conductors

MPN: 876
PPN: T-B-876

Spec sheet

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$83.19/ EA

Qty:

Loading add to cart quantity...

Description

Aluminum Loop Compression Splices, ACSR 477, AAC 500-556.6, length 7-1/2 inch, EEI die code - 15A, UT 5 type dies - TH (6), hydraulic dies - 115 (3), 115H (6), 318.

Specifications

Packaging

Outer Quantity: 25

Weight Uom: 75 lbs. per 100

Outer Dimensions (inches)13.75x9x8.75

North American Specifications (UNSPSC)

UNSPSC: 39121449 Wire or cable compression splice

Brand Name: Blackburn

Special Features: All splices are marked with conductor size, installing die references, and compression locations. Pre-filled with oxide inhibitor to prevent oxidation and keep out moisture. Constructed from Aluminum for High Conductivity.

Standard: ANSI C119.4

Connection: Crimp/Compression

Number Of Conductors: 2

Insulation: None

IGCC4669 Wire or cable compression splice

TypeAluminum Loop Compression Splices

ApplicationFor ACSR, ACAR, AAAC 5005 abd AAC Conductors

Size7-1/2 inch long

Conductor Range477 ACSR/ACAR/5005/AAAC, 500-556.6 AAC

MaterialAluminum

Downloads
