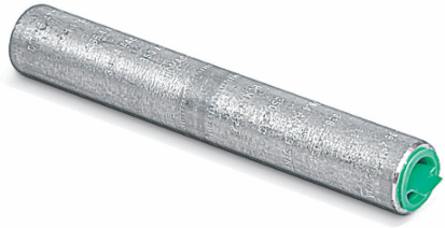

Blackburn 879 Aluminum Loop Compression Splices for ACSR/AAAC Conductors, 9-3/4 Inch Long, 1.13 lbs Each

MPN: 879
PPN: T-B-879

Spec sheet

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$88.06/ EA

Qty:

Loading add to cart quantity...

Description

Aluminum Loop Compression Splices, ACSR 556.5, AAC 600-700, length 9-3/4 inch, UT 5 type dies - TH (6), hydraulic dies - 125 (3), 125 (H), 1-5/16, 608.

Specifications

North American Specifications (UNSPSC)

UNSPSC: 39121449 Wire or cable compression splice

Brand Name: Blackburn

Special Features: All splices are marked with conductor size, installing die references, and compression locations. Pre-filled with oxide inhibitor to prevent oxidation and keep out moisture. Constructed from Aluminum for High Conductivity.

Standard: ANSI C119.4

Connection: Crimp/Compression

Number Of Conductors: 2

Insulation: None

IGCC4669 Wire or cable compression splice

TypeAluminum Loop Compression Splices

ApplicationFor ACSR, ACAR, AAAC 5005 abd AAC Conductors

Size9-3/4 inch long

Conductor Range556.5 ACSR/ACAR/5005/AAAC, 600-700 AAC

MaterialAluminum

Packaging

Outer Quantity: 25

Weight Uom: 1.13 lbs. Each

Outer Dimensions (inches)13.5x9x8.5

Downloads
