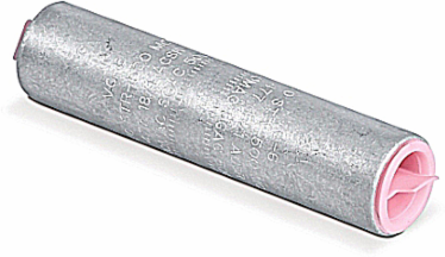

Blackburn SGAC 500 Aluminum Dieless Compression Splice 5 Inch for 4/0 Stranded Conductors
- MPN: SGAC 500
- UPC: 783786751594
- PPN: T-B-SGAC 500
CAD
$54.39
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Aluminum Multi-Range Dieless Compression Splices - Minimum Tension, conductor size 4/0 str-500-477 (18/1), decimal range min outside diameter .522, decimal range max outside diameter .814, tool - VC-6, length 5 in
Features
- Made of Aluminum for High Strength and High Conductivity.
- Solid Center Stop Ensures Proper Cable Insertion.
- Dual-Rated for Use with Aluminum and Copper Conductors.
- Connector Bores Coated with Oxide Inhibitor and Capped to Prevent Oxidation.
- All Splices Marked with Conductor Sizes for Easy Identification.
Documentation & Downloads
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121449 Wire or cable compression splice
- Brand Name
- Blackburn
- Special Features
- Dual-rated. Use with Aluminum and Copper conductors. All splices are marked with conductor size for easy identification. Solid center stop ensures proper cable insertion. Connector Bores coated with Oxide Inhibitor and Capped to Prevent Oxidation. Made from Aluminum for high strength and high conductivity.
- Connection
- Crimp/Compression
- Material
- Aluminum
IGCC4669 Wire or cable compression splice
TypeAluminum Multi-Range Dieless Compression Splice
Size5 inches long
Conductor Range4/0 Stranded - 500 - 477(18/1)
InsulationNon-Insulated
Packaging
- Outer Quantity
- 25
- Weight Uom
- 32.5 lbs. per 100
Outer Dimensions (inches)8.1x6.3x6.7
