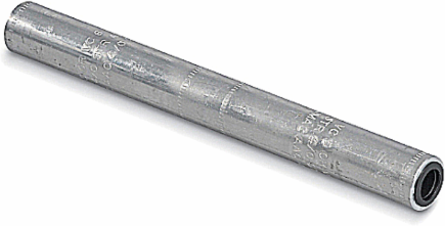

Blackburn AAC 500 FT Aluminum Multi-Range Dieless Compression Splice 336.4 Stranded - 500 Aluminum

MPN: AAC 500 FT
UPC: 783786681303
PPN: T-B-AAC 500 FT

Spec sheet

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$192.97/ EA

Qty:

Loading add to cart quantity...

Description

Aluminum Multi-Range Dieless Compression Splices AAC Series - Full Tension, conductor size 336.4 str. - 500 aluminum

Features

Solid Center Stop Ensures Proper Cable Insertion.
Dual-Rated for Use with Aluminum and Copper Conductors.
Connector Bores Coated with Oxide Inhibitor and Capped to Prevent Oxidation.
All Splices Marked with Conductor Size and Die Reference, Providing Easy Identification for Easy Installation.
Designed to Develop 95 Percent or More of the Conductor's Rated Strength.
Meets or Exceeds ANSI C119.4 Specification.

Specifications

North American Specifications (UNSPSC)

UNSPSC: 39121449 Wire or cable compression splice

Brand Name: Blackburn

Special Features: Dual-rated. Use with Aluminum and Copper conductors. All splices are marked with conductor size for easy identification. Solid center stop ensures proper cable insertion. Connector Bores coated with Oxide Inhibitor and Capped to Prevent Oxidation

Connection: Crimp/Compression

Material: Aluminum

IGCC4669 Wire or cable compression splice

TypeAluminum Multi-Range Dieless Compression Splice - Full Tension

Size12-1/2 inches long

Conductor Range336.4 Stranded - 500 Aluminum

InsulationNon-Insulated

Packaging

Outer Quantity: 25

Weight Uom: 0.79 lbs. Each

Outer Dimensions (inches)1x1x1
