Aluminum Parallel-Groove Clamp for 1/0-8 AWG Conductors, 5.87x4.5x6.87 Inch

Documentation & Downloads

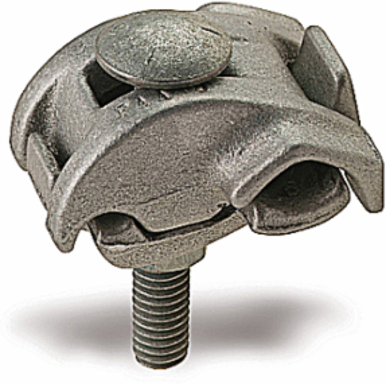

Blackburn PAA5 Aluminum Parallel-Groove Clamp for 1/0-8 AWG Conductors, 5.87x4.5x6.87 Inch

MPN: PAA5
UPC: 783786330010
PPN: T-B-PAA5

CAD

$24.09

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Compare

Description

Aluminum Type PAA - One and Two Bolt Aluminum Parallel Groove Clamp for Wire Range Main: 1/0-8 ASCR 1/0 Str.-8 Sol. AL/CU, Tap: 1/0-8 ASCR 1/0 Str.-8 Sol. ALCU

Documentation & Downloads

Specifications

North American Specifications (UNSPSC)

UNSPSC: 39121449 Wire or cable compression splice

Brand Name: Blackburn

Special Features: High-Strength, Heat-Treated Cast Aluminum Alloy provides Secure Connections. Galvanized Steel Carriage Bolt, Nut and Lockwasher included. Dual-Rated for use on Aluminum, ACSR and Copper Conductors.

Size: Bolt Head 9/16 inch, Bolt Size 3/8 inch, Height 2-7/32 X Length 1-11/16 X Width 1-1/2 inch

Conductor Range: Main: 1/0-8 ASCR 1/0 Str.-8 Sol. AL/CU, Tap: 1/0-8 ASCR 1/0 Str.-8 Sol. ALCU

Material: Aluminum

Mounting: None

IGCC4669 Wire or cable compression splice

TypeParallel-Groove Clamp

ApplicationSecuring Conductors

ConnectionBolted

Number Of Conductors2

InsulationNone

Environmental ConditionsAll Seasons / Conditions

Packaging

Inner Quantity: 50

Outer Quantity: 300

Weight Uom: 19.06 lbs. per 100

Inner Dimensions (inches)5.87x4.5x6.87

Outer Dimensions (inches)11.1x7.8x19.5
