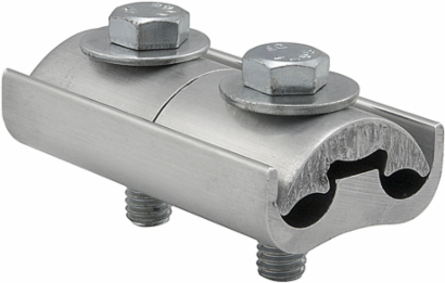

Aluminum Parallel Groove Clamp, Dual Rated, Double Clamp, Conductor Range 4/0-2, 3/8in Steel Bolt
ILSCO

ILSCO PG402-2S-Z Aluminum Parallel Groove Clamp, Dual Rated, Double Clamp, Conductor Range 4/0-2, 3/8in Steel Bolt

  • MPN: PG402-2S-Z
  • UPC: 783669730302
  • PPN: ILC-PG402-2S-Z

CAD

$33.70

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Aluminum Parallel Groove Clamp, Dual Rated, Double Clamp, Conductor Range 4/0-2, 3/8in Steel Bolt

Documentation & Downloads

Specifications

Key Specifications

Height
1.75 in | 44.45 mm
Weight
0.303789928527552 lbs
Length3.031 in | 76.9874 mm
Width1.719 in | 43.6626 mm

Dimensions

Drive Size Main
9/16
Height (mm)
44.45
Width (mm)
43.6626
Drive Type MainExternal Hex
Length (mm)76.9874

Testing Standards

Prop65 Compliance
This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation

Additional Class Attributes

Connection
Mechanical
Number of Conductors
2
Wire Orientation
Parallel
Contains DE-OX®Yes
Number of Poles1

Material and Finish

Clamping Hardware Material
Steel
Connector Finish
Clear
Wire Binding Hardware Finish
Tin
Conductor MaterialAluminum, Copper
MaterialAluminum
Wire Binding Hardware MaterialAluminum

Conductor Ranges

Conductor Range AL Stranded (Primary, run, main, line)
4/0 Str - 2 Str
Conductor Range CU Stranded (Primary, run, main, line)4/0 Str - 2 Str

Additional Technical Specifications

Conductor Type
Stranded

General

Bag Quantity
1
Direct Burial
No
NEMA Code
S-588-4
Carton Quantity DescriptionSTD PACK QTY 50
Dual RatedYes
UPC Code78366973030

Bolt and Screw Sizes

Clamping Bolt Size
3/8
Number of Wire Binding Screws per Port2

Color

Color
Silver
