Blackburn PAA4 Parallel-Groove Clamp

Parallel-Groove Clamp

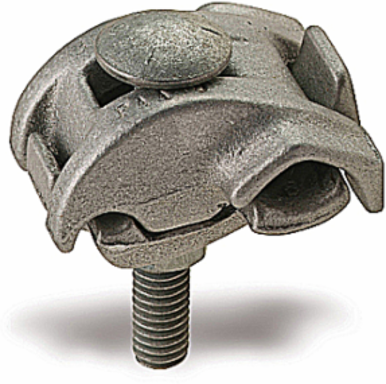

Blackburn PAA4 Parallel-Groove Clamp

MPN: PAA4
UPC: 783786330003
PPN: T-B-PAA4

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$23.61/ EA

Loading add to cart quantity...

Description

Aluminum Type PAA - One and Two Bolt Aluminum Parallel Groove Clamp for Wire Range Main: 1/0-6 ASCR 1/0 Str.-6 Sol. AL/CU, Tap: 1/0-6 ASCR 1/0 Str.-6 Sol. ALCU

Specifications

Packaging

Inner Dimensions (inches): 2.3x1.5x1.5

Outer Dimensions (inches): 12x6.2x6.4

Outer Quantity50

Weight Uom16.5 lbs. per 100

North American Specifications (UNSPSC)

UNSPSC: 39121449 Wire or cable compression splice

Brand Name: Blackburn

Special Features: High-Strength, Heat-Treated Cast Aluminum Alloy provides Secure Connections. Galvanized Steel Carriage Bolt, Nut and Lockwasher included. Dual-Rated for use on Aluminum, ACSR and Copper Conductors.

Size: Bolt Head 9/16 inch, Bolt Size 3/8 inch, Height 2-7/32 X Length 1-3/16 X Width 1-1/2 inch

Conductor Range: Main: 1/0-6 ASCR 1/0 Str.-6 Sol. AL/CU, Tap: 1/0-6 ASCR 1/0 Str.-6 Sol. ALCU

Material: Aluminum

Mounting: None

IGCC4669 Wire or cable compression splice

TypeParallel-Groove Clamp

ApplicationSecuring Conductors

ConnectionBolted

Number Of Conductors2

InsulationNone

Environmental ConditionsAll Seasons / Conditions
