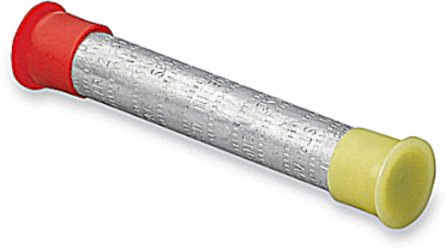

Blackburn SNG 46 Aluminum Semi-Tension Neutral Compression Splice
Blackburn SNG 46 Aluminum Semi-Tension Neutral Compression Splice
- MPN: SNG 46
- UPC: 783786752911
- PPN: T-B-SNG 46
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$9.32/ EA
Description
Aluminum Semi-Tension Neutral Compression Splices - Common Die Series, Conductor A: ACSR 4, Stranded 4, Conductor B: ACSR 6, Stranded 6, installing dies - TU, 52, 5/8, BG, 243, 8A.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121449 Wire or cable compression splice
- Brand Name
- Blackburn
- Special Features
- Prefilled with Oxide Inhibitor and topped with color-coded caps. Prevents oxidation and keeps out moisture. Solid Center Stops. Easy cable insertion. Designed to develop 40 percent of the conductors rated strength. All splices are marked with installation die codes and compression locations, providing easy identification for easy installation.
- Standard
- ANSI C119.4
- Connection
- Crimp/Compression
- Number Of Conductors
- 2
- Insulation
- None
IGCC4669 Wire or cable compression splice
TypeAluminum Semi-Tension Neutral Compression Splice
ApplicationAluminum construction provides high Conductivity
Size4-1/4 inches
Conductor RangeSide A #4, Side B #6
MaterialAluminum
Packaging
- Outer Quantity
- 150
- Weight Uom
- 0.13 lbs. Each
Outer Dimensions (inches)13.5x8.6x8.3
