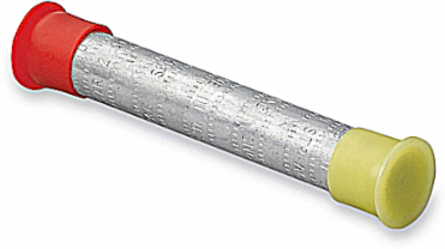

Blackburn SNG 66 Aluminum Semi-Tension Neutral Compression Splice, 4-1/4 Inch, #6 Conductor Capacity

MPN: SNG 66
PPN: T-B-SNG 66

Spec sheet

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$8.99/ EA

Qty:

Loading add to cart quantity...

Description

Aluminum Semi-Tension Neutral Compression Splices - Common Die Series, Conductor A: ACSR 6, Stranded 6, Conductor B: ACSR 6, Stranded 6, installing dies - TU, 52, 5/8, BG, 243, 8A.

Specifications

North American Specifications (UNSPSC)

UNSPSC: 39121449 Wire or cable compression splice

Brand Name: Blackburn

Special Features: Prefilled with Oxide Inhibitor and topped with color-coded caps. Prevents oxidation and keeps out moisture. Solid Center Stops. Easy cable insertion. Designed to develop 40 percent of the conductors rated strength. All splices are marked with installation die codes and compression locations, providing easy identification for easy installation.

Standard: ANSI C119.4

Connection: Crimp/Compression

Number Of Conductors: 2

Insulation: None

IGCC4669 Wire or cable compression splice

TypeAluminum Semi-Tension Neutral Compression Splice

ApplicationAluminum construction provides high Conductivity

Size4-1/4 inches

Conductor RangeSide A #6, Side B #6

MaterialAluminum

Packaging

Outer Quantity: 150

Weight Uom: 12.5 lbs. per 100

Outer Dimensions (inches)13.5x8.5x8.5
