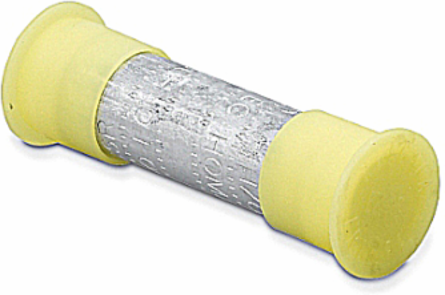

Blackburn U 1 B 1010 Aluminum Service Entrance Compression Splice 2 Inch, 1/0 ACSR, Crimp Connection
- MPN: U 1 B 1010
- UPC: 783786756070
- PPN: T-B-U 1 B 1010
CAD
$7.90
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Aluminum 2 inch Service Entrance Compression Splice for Wire Range, End A: 1/0 ACSR, 1/0 Stranded, Yellow, End B: 1/0 ACSR, 1/0 Stranded, Yellow, Die: 5/8.
Documentation & Downloads
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121449 Wire or cable compression splice
- Brand Name
- Blackburn
- Special Features
- Prefilled with Oxide Inhibitor, Prevents oxidation and keeps out moisture. Solid Center Stops. Easy cable insertion. All splices are marked with installation die codes and compression locations for easy identificaton and installation.
- Size
- 2 inches long
- Conductor Range
- Side A 1/0 (6/1) ACSR, 1/0 Stranded, #1 Solid. Side B 1/0(6/1) ACSR, 1/0 Stranded
- Material
- Aluminum
- Insulation
- None
IGCC4669 Wire or cable compression splice
TypeAluminum Service Entrance Compression Splices
StandardANSI C119.4
ConnectionCrimp/Compression
Number Of Conductors2
ColorYellow/Yellow
Packaging
- Inner Quantity
- 100
- Outer Quantity
- 500
- Weight Uom
- 5 lbs. per 100
Inner Dimensions (inches)xx
Outer Dimensions (inches)22x17.5x5.5
