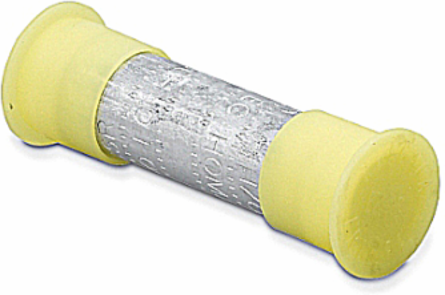

Blackburn U 1 B 24 Aluminum Service Entrance Compression Splices
Blackburn U 1 B 24 Aluminum Service Entrance Compression Splices
- MPN: U 1 B 24
- UPC: 783786756247
- PPN: T-B-U 1 B 24
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$8.28/ EA
Description
Aluminum 2 inch Service Entrance Compression Splice for Wire Range, End A: 2 6/1,7/1 ACSR, 1-2 Stranded, Orange, End B: 4 6/1,7/1 ACSR, 3-4 Stranded, 2 Solid, Orange, Die: 5/8.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121449 Wire or cable compression splice
- Brand Name
- Blackburn
- Special Features
- Prefilled with Oxide Inhibitor, Prevents oxidation and keeps out moisture. Solid Center Stops. Easy cable insertion. All splices are marked with installation die codes and compression locations for easy identificaton and installation.
- Size
- 2 inches long
- Conductor Range
- Side A #2(6/1, 7/1) ACSR, #1 and #2 Stranded, #1 Solid. Side B #4(6/1,7/1) ACSR, #2 Solid
- Material
- Aluminum
- Insulation
- None
IGCC4669 Wire or cable compression splice
TypeAluminum Service Entrance Compression Splices
StandardANSI C119.4
ConnectionCrimp/Compression
Number Of Conductors2
ColorRed/Orange
Packaging
- Inner Quantity
- 100
- Outer Quantity
- 500
- Weight Uom
- 5.63 lbs. per 100
Inner Dimensions (inches)1x1x1
Outer Dimensions (inches)27.75x17.25x5.5
