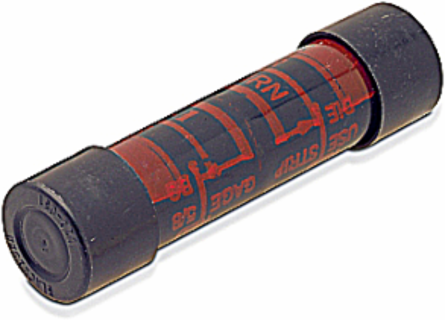

Blackburn UOO 44 SP Aluminum Service Entrance Compression Splice, 2-3/4 Inch, for 4 ACSR, 3-4 Stranded
- MPN: UOO 44 SP
- UPC: 783786755431
- PPN: T-B-UOO 44 SP
CAD
$4.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Aluminum 2-3/4 inch Service Entrance Compression Splice for Wire Range, End A: 4 ACSR, 3-4 Stranded, 2 Solid, Orange, End B: 4 ACSR, 3-4 Stranded, 2 Solid, Orange, Die: 5/8, with Seal Plug.
Documentation & Downloads
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121409 Wire connectors
- Brand Name
- Blackburn
- Special Features
- Solid Center Barriers. Large Chambers. Nylon Sleeves. Oxide Inhibitor. Colored Caps. Seal Plug.
- Standard
- ANSI C119.4
- Connection
- Compression/Crimp
- Number Of Conductors
- 2
- Finish
- Nylon Sleeve
IGCC4543 Wire connectors
TypeService Entrance Compression Splice
ApplicationFor Standard Conductors.
Size2-3/4 inch long
Wire SizeEnd A: 4 ACSR, 3-4 Stranded, 2 Solid, End B: 4 ACSR, 3-4 Stranded, 2 Solid.
MaterialAluminum
InsulationYes
Packaging
- Inner Quantity
- 100
- Outer Quantity
- 500
- Weight Uom
- 4.5 lbs. per 100
Inner Dimensions (inches)16x5.6x4.3
Outer Dimensions (inches)21.8x17.4x5.8
