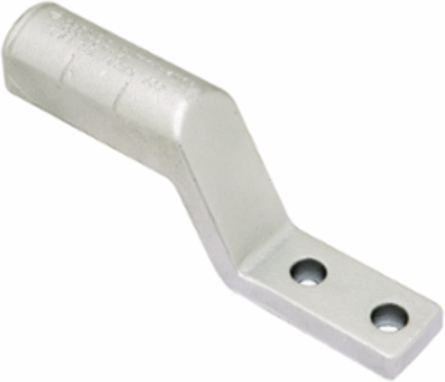

Burndy YAK44A2NG7 Aluminum Stacking Terminal Lug, 1000 kcmil, 1.75 Inch Spacing, 8.88 Inch Length
- MPN: YAK44A2NG7
- UPC: 781810187500
- PPN: BUR-230250
CAD
$163.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Al Stacking Terminal Lug, 1000 kcmil(Al), 1.75" Spacing.
Features
- Features: Compression Terminal, Conductor Type: Aluminum, Tools, Die Set Catalog Number, And (number Of Crimps): Y45 Tool, S44ART Die, Y46 Tool, P44ART Die, Die Index: 302, Tongue Angle: Straight
Documentation & Downloads
Specifications
Certifications and Compliance
- Certification - CSA Approved
- No
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedNo
Conductor Related
- Conductor - AL Str Size
- 1000 kcmil
Conductor - AL Str Size Range1000 kcmil
General
- Application
- For Aluminum
- Feature - Barrel Style
- Chamfered
- Physical Attribute - Number of Crimps Required
- 2
- Physical Attribute - Tongue Type
- Standard
- Plating Type
- Unplated
- Trade Name
- HYLUG™
- UPC
- 781810187500
Die Index302
MaterialAluminum Alloy
Physical Attribute - Number of Holes2
PlatedN
Sub BrandTERMINALS, HYLUG
TypeYAK-A-2G, Stacking Lug
UPC 12 Digit7818101875000

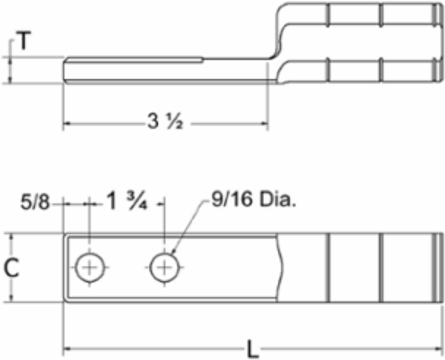

Dimensions
- Dimension - B Length inch
- 2.97 in
- Dimension - D inch
- 3.25 in
- Dimension - L Length Overall mm
- 226 mm
- Dimension - N inch
- 0.62 in
- Dimension - Pad Width inch
- 1.62 in
Dimension - Bolt Hole Size inch0.50 in
Dimension - Hole Size inch0.56 in
Dimension - Length Overall inch8.88 in
Dimension - Outside Diameter inch1.84 in
Physical Attribute - Tongue AngleOffset
