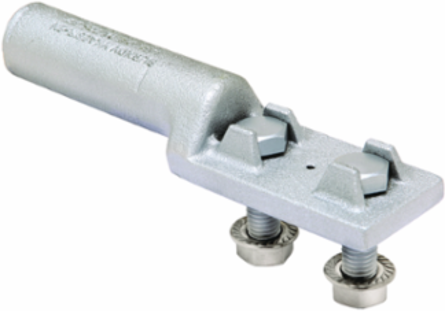

Burndy YKA25R2N Disconnectable Terminal, 5-5/8 Inch Length, 1/0 AWG Aluminum, Straight Pad Configuration
- MPN: YKA25R2N
- UPC: 781810016992
- PPN: BUR-207885
CAD
$248.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Disconnectable Terminal (With Fixed Hardware), 1/0 ACSR 1/0 (7, 19) Cu 1/0 (7, 19) Al, 5-5/8 in L.
Features
- Features: Aluminum Compression Terminal With Fixed Hardware And Positioning Pin For Making Disconnectable Tap Or Jumper Connections, Used With Slotted YTA-R-2N T-Tap Or YSA-R-2N Terminal, Supplied With Aluminum Bolts And Washer-Face, Self Locking Nuts, Prefilled With PENETROX Joint Compound And Capped, Pad Configuration: Straight, Size: 5-5/8 IN Overall Length X 3 IN Pad Length X 1-7/8 IN Pad Width X 3/8 IN Pad Thickness, Wire Type: ACSR 6201 5005 (Compressed / Compact), Aluminum, Copper, Die Index: Aluminum/6201/5005: 659, Copper/ACSR: C, Tools, Die Set Catalog Number, And (number Of Crimps): MD6, MD7 Tool, W-C Die, (6), Y35, Y750 Tool, U659 Die, (2), U-C Die, (3)
Documentation & Downloads
Specifications

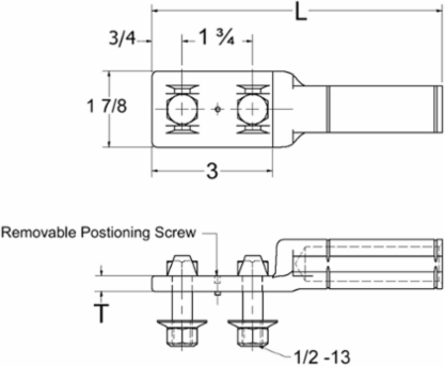

Dimensions
- Dimension - B Length inch
- 1.64 in
- Dimension - E Spacing between Holes fraction
- 1-3/4 in
- Dimension - Length Overall inch
- 5.56 in
Dimension - Bolt Size fraction1/2
Dimension - L Length Overall mm141 mm
Certifications and Compliance
- Certification - CSA Approved
- No
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedNo
General
- Application
- For Copper, Aluminum, ACSR, 6201, 5005, Compressed And Compact Conductors And Making Disconnectable Tap Or Jumper Connections
- Die Index
- C; 658
- Physical Attribute - Pad Configuration
- Straight
- Plating Type
- Unplated
- Sub Brand
- HYLUG
- UPC
- 781810016992
Connector TypeTerminal
MaterialAluminum
PlatedN
Prefilled Oxide InhibitorY
TypeYKA-R-2N, Disconnectable
Conductor Related
- Conductor - ACSR Str Size
- 1/0 (6/1) Raven AWG
- Conductor - Copper Str Size
- 1/0
Conductor - AL Str Size1/0 AWG
Conductor - Copper Str Size Range1/0
