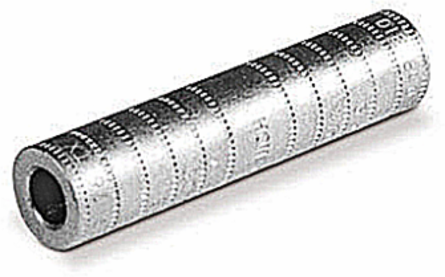

Blackburn SAC 2 Aluminum Straight Splice 3 Inch for #2 Concentric/Compressed, #1, #2 Compact Conductors
Blackburn SAC 2 Aluminum Straight Splice 3 Inch for #2 Concentric/Compressed, #1, #2 Compact Conductors
- MPN: SAC 2
- PPN: T-B-SAC 2
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$20.43/ EA
Description
Aluminum Straight Splices - common die series, concentric 2, compressed 2, compact 1 and 2, solid 1
Features
- Entire Conductor Range Installed by Six Common Dies to Reduce Die Inventory.
- Made from Aluminum for High Strength and Conductivity.
- Solid Center Stop Ensures Proper Cable Insertion.
- Dual-Rated for Use with Aluminum and Copper Conductors.
- Connector Bores Coated with Oxide Inhibitor to Prevent Oxidation.
- All Splices Marked with Conductor Sizes and Die References for Easy Identification.
- Meets or Exceeds ANSI C119.4 Specifications.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121449 Wire or cable compression splice
- Brand Name
- Blackburn
- Special Features
- Entire conductor range installed by three common dies. Lessens your die inventory. Dual-Rated for use with Aluminum and Copper Conductors. Made from Aluminum for High Strength and High Conductivity. Conncetor Bores Coated with Oxide Inhibitor to Prevent Oxidation. Solid Center Stop ensures Proper Cable Insertion. Marked with conductor sizes and die references.
- Size
- Length 3 inches
- Conductor Range
- #2 Concentric/Compressed, #1, #2 Compact, #1 Solid
- Material
- Aluminum
- Insulation
- None
IGCC4669 Wire or cable compression splice
TypeAluminum Straight Splice
ApplicationSplices designed for general URD Applications
ConnectionCompression/Crimp
Number Of Conductors2
FinishBare
Packaging
- Outer Quantity
- 100
- Weight Uom
- 8.5 lbs. per 100
Outer Dimensions (inches)7.9x6.6x6.9
