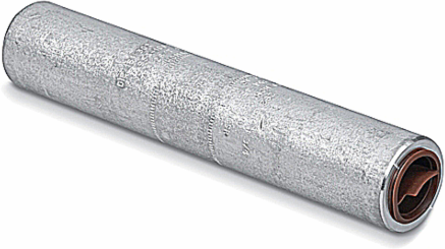

Blackburn AC 750 Aluminum Compression Splice - Length 8-9/32 Inch, Dual-Rated for Aluminum & Copper
- MPN: AC 750
- UPC: 783786691890
- PPN: T-B-AC 750
CAD
$103.30
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Aluminum Straight Splices, concentric 700-750, ACSR 636 (26/7), installing dies 140H,301,342,1 1/2, Length 8-9/32 inches
Features
- Made of Aluminum for High Strength and High Conductivity.
- Solid Center Stop Ensures Proper Cable Insertion.
- Dual-Rated for Use with Aluminum and Copper Conductors.
- All Splices Marked with Conductor Size and Die Reference for Easy Identification.
- Meets or Exceeds ANSI C119.4 Specifications. All Tin-Plated Splices are UL Listed.
Documentation & Downloads
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121449 Wire or cable compression splice
- Brand Name
- Blackburn
- Special Features
- Solid Center Stop ensures proper cable insertion. Made from Aluminum which provides high strength and high conductivity.
- Standard
- ANSI C119.4
- Connection
- Compression/Crimp
- Number Of Conductors
- 2
- Finish
- Bare
IGCC4669 Wire or cable compression splice
TypeAluminum Splice
ApplicationDesigned for General Application
SizeLength 8-9/32 inches
Conductor Range750
MaterialAluminum
InsulationNone
Packaging
- Outer Quantity
- 20
- Weight Uom
- 1.06 lbs. Each
Outer Dimensions (inches)13.9x8.5x7.8
