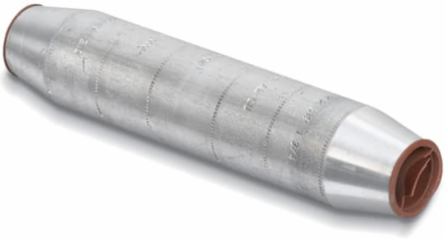

Blackburn ATC 1000-7 Aluminum Compression Splice, 7 Inch Long, Dual Rated for AL-CU Conductors
Blackburn ATC 1000-7 Aluminum Compression Splice, 7 Inch Long, Dual Rated for AL-CU Conductors
- MPN: ATC 1000-7
- UPC: 783786697083
- PPN: T-B-ATC 1000-7
- UNSPSC: 39121449
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$215.29/ EA
Description
Aluminum Tapered Splices, 1000 kcmil AL-CU, installing dies 161, 302, 292, 319, 1 3/4. Length 7 inch. Outside Diameter 1-27/32 inch. Oil Stop. Oxide Inhibitor. Brown Caps.
Specifications
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4669 >> Wire or cable compression splice
Additional Information
- Application
- Tapered ends enable use in High-Voltage Applications up to 69kV.
- Connection Type
- Compression
- Insulation Material
- None
- Product Name
- ELECTRICAL SPLICE<1000V
- Size
- 7 inch long
- Standards
- ANSI C119.4
Brand / LabelHomac
Effective Date20080619
Number of Conductors2
Product TypeCompression Splice Tapered
Special FunctionsSolid center stop ensures proper cable insertion. Dual rated for use with Aluminum and Copper Conductors. All Splices marked with die references for easy installation. Connector bores coated with oxide inhibitor to prevent oxidation.
Surface FinishingBare
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
