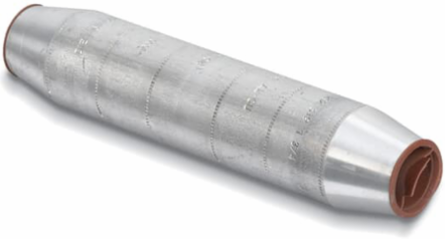

Blackburn ATC 600 TN Tin-Plated Aluminum Compression Splice, 5-29/32 Inch Long, 600 kcmil AL-CU
Blackburn ATC 600 TN Tin-Plated Aluminum Compression Splice, 5-29/32 Inch Long, 600 kcmil AL-CU
- MPN: ATC 600 TN
- UPC: 783786697595
- PPN: T-B-ATC 600 TN
- UNSPSC: 39121449
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$115.62/ EA
Description
Tin-Plated Aluminum Tapered Splices, 600 kcmil AL-CU, installing dies 115H, 786, 936, 1 5/16. Length 5-29/32 inch. Outside Diameter 1-7/16 inch. Oil Stop. Oxide Inhibitor. Black Caps.
Specifications
Additional Information
- Application
- Tapered ends enable use in High-Voltage Applications up to 69kV.
- Connection Type
- Compression
- Insulation Material
- None
- Product Name
- ELECTRICAL SPLICE<1000V
- Size
- 5-29/32 inch long
- Standards
- ANSI C119.4
Brand / LabelHomac
Effective Date20080619
Number of Conductors2
Product TypeCompression Splice Tapered
Special FunctionsSolid center stop ensures proper cable insertion. Dual rated for use with Aluminum and Copper Conductors. All Splices marked with die references for easy installation. Connector bores coated with oxide inhibitor to prevent oxidation.
Surface FinishingTin-Plated
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4669 >> Wire or cable compression splice
