nVent Hoffman AL2DR 1-Door Type 12 Enclosure Latch Kit, 3 Point, Steel, Keylock, 60-72 Inch
- MPN: AL2DR
- UPC: 783510219604
- PPN: HOF-AL2DR
- UNSPSC: 39121321
CAD
$338.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

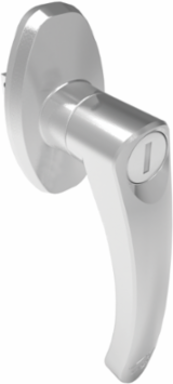

1-Door Type 12 Enclosure Latch Kit, 3 Point, Steel, Keylock, 60-72 Inch
Features
- Each kit includes a handle, latch, latch rods, adjustable rod guides and all hardware
- These kits are available with a key locking handle, a non-locking handle or a padlocking handle
- Two keys are furnished with keylocking handles
- Engineered as a heavy-duty field accessory within Hoffman's A80 series, this item is a complete 3-point keylocking door handle and latch mechanism kit. It is purpose-built for retrofitting or updating standard single-door industrial cabinets to establish reliable, highly centralized door closure controls.
- The mechanism features a single, centralized key-locking T-handle that uses a clockwise (CW) turning movement to actuate the assembly. Upon turning, the interior gearbox smoothly drives a 3-point multi-latch rod system that simultaneously secures the door at the top, center, and bottom edge rails to distribute sealing pressure evenly.
- The handle and primary latch linkages are fabricated from high-tensile steel finished in a polished brushed chrome coating that resists surface scratching, impact, and standard industrial chemical fumes.
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Handle Type
- Keylock
- NEMA Rating
- 12 Indoor, dust-resistant
- Works With
- NEMA
- Size
- 3 Point (A=60to72) in
FinishBrushed Chrome
OpensClockwise
Weight3.6
MaterialSteel
