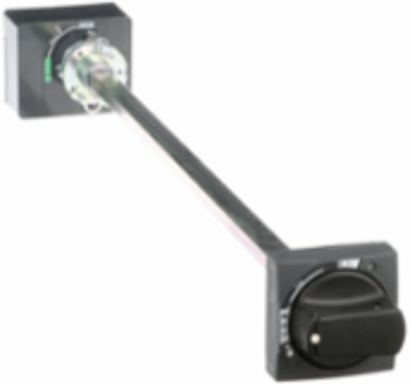

Schneider Electric LV426932 Extended Rotary Handle, ComPacT NSXm, Shaft Length 200-600mm, IP54
- MPN: LV426932
- PPN: SCH-LV426932
CAD
$528.00
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This extended rotary handle is a control accessory for Compact NSXm and PowerPact B devices. The circuit breaker installed in a switchboard with this extended rotary handle is IP54 according to IEC 60529 standard. It can be mounted on the device with an extension shaft up to 600 mm and it maintains suitability for isolation. The shaft length is adjustable. This accessory has a black handle on a black front. Padlocks can be used to lock the handle and disable door opening.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Argentina, Brazil, Czechia, France |
|---|
Physical Attributes
| Handle Color | black |
|---|
| Handle Front Plate Color | black |
|---|
Important Information Attributes
| Rotary Handle Padlocking | 1 to 3 padlocks, padlock in OFF position, padlock in ON position |
|---|---|
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 2 kg CO2 eq., 1.6257534883720932 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 4 kg CO2 eq., 4.037217165005537 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | Out |
| Eoli Availability Display | Yes |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1830 |
| China Rohs In Scope | No |
| Without Single Use Plastic | No |
| Important Message | This product has been switched to new ComPacT range and is no longer commercialized. |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range | ComPact |
| Returnability | No |
| Rotary Handle Mounting Style | extended |
| Sustainable Packaging | No |
| Handle Color | black |
| Pep Code | ENVPEP2204005EN |
| Pep Verification Date | 2023-09-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Accessory / Separate Part Type | control accessories |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8538908120 |
| Carbon Footprint Of The Distribution Phase [A4] | 0.1231759911406423, 0.1 kg CO2 eq. |
|---|---|
| Carbon Footprint Of The Installation Phase [A5] | 0.2907292580287929, 0.3 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2025-12-11 |
| Stocking Flag | Y |
| Device Type | LV equipment - Low voltage circuit breaker |
| Traceability | No |
| Average Life Duration | 15 year(s) |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2204005EN |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | Yes |
| Product Kit Identifier | N |
| Locking Options Description | 1 to 3 padlocks Ø 4 to Ø 8 |
| Product Or Component Type | rotary handle |
| Range Of Product | ComPact NSXm |
| Rotary Handle Mounting Location | front |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 6 kg CO2 eq. |
| Handle Front Plate Color | black |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Rotary Handle for MCCB is to allow the ON, OFF, TRIP, RESET operation of MCCB from the front face of the switchboard for 20 years.& 10& 10IP Class = IP55 (Rotary Handle) |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; CN |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Recyclability Potential In % | 65 |
| Halogen-free Status | Halogen free plastic parts product |
| Package Weight(Lbs) | 709.000 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Halogene Performance | Halogen free plastic parts product |
| Carbon Footprint | 6.076875902547066 |
| Environmental Disclosure | ENVPEP2204005EN |
| Halogen Content Performance | Halogen free plastic parts product |
| Packaging Made With Recycled Cardboard | Yes |
| Pep Code | ENVPEP2204005EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Take Back | No |
|---|---|
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2204005EN |
| Eu Rohs Directive | Compliant By Exemption |
| Ip Degree Of Protection | IP54 |
| Packaging Without Single Use Plastic | No |
| Pep Verification Date | 2023-09-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | rotary handle |
|---|
| Range Of Product | ComPact NSXm |
|---|
ETIM
| ETIM 8 | EC000230 |
|---|
| ETIM 9 | EC000230 |
|---|
