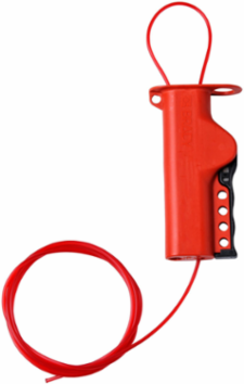

Brady 50941 All-Purpose Cable Lockout Device with 8 ft Nylon Cable, 6 in Height, Red
- MPN: 50941
- UPC: 754473509415
- PPN: BRD-50941
- UNSPSC: 39121905
CAD
$63.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

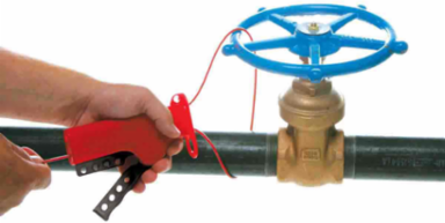

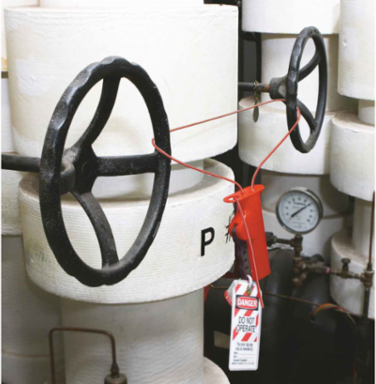

Cable lockouts are incredibly versatile making them perfect for all of your unusual energy isolating devices that are difficult to lockout.
Features
- Compact, lightweight body is made of rugged impact modified glass filled nylon for superior chemical, corrosion and temperature resistance properties
- Includes nonconductive nylon (1/8" diameter) cable
- Ergonomic design makes it a "cinch" to tighten cable - hold device in one hand and cinch tight with the other
- Built-in cable loop keeps cable neatly coiled when stored and prevents it from dangling loose when device is being used
Documentation & Downloads
Specifications
Key Specifications
- Brand Name
- Brady®
- Cable Included
- Yes
- Enables Industry Compliance
- OSHA 1910.147
- Primary Noun, Basic Function
- Lockout Device
- Total Qty per Pack
- 1 Piece(s) / Pack
- Adhesive (Y/N)
- No
- Cable Material
- Nylon
- Material
- Polypropylene
- Body Depth (in/ft/yd)
- 3.25 in
- Body Height (in/ft/yd)
- 6 in
- Body Size (in/ft/yd)
- 6 in H x 1.276 in W x 3.25 in D
- Body Width (in/ft/yd)
- 1.276 in
- Cable Diameter (in/ft/yd)
- 0.125 in
- Cable Length (in/ft/yd)
- 8 ft
- Depth (mm/cm/m)
- 32.40 mm
- Height (mm/cm/m)
- 152.40 mm
- Maximum Shackle Diameter (in/ft/yd)
- 0.281 in
- Maximum Wire Diameter (mm/cm/m)
- 4.33 mm
- Minimum Shackle Clearance (in/ft/yd)
- 0.375 in
- Minimum Wire Diameter (mm/cm/m)
- 4.33 mm
- Size - W x H x D (mm)
- 82.00 x 152.40 x 32.40
Cable ColorRed
ColorRed
Maximum Number of Padlocks4
Risk TypeMechanical Risk
TypePull-Tight
Brady Material NumberLOTO-3
ConductiveNo
SAP B-NumberLOTO-3
Body Depth (mm/cm/m)82.6 mm
Body Height (mm/cm/m)152.4 mm
Body Size (mm/cm/m)152.4 mm H x 32.4 mm W x 82.6 mm D
Body Width (mm/cm/m)32.4 mm
Cable Diameter (mm/cm/m)3.18 mm
Cable Length (mm/cm/m)2.44 m
Dimensions (Metric)82.00 mm W x 152.40 mm H x 2.44 m L x 32.40 mm D
Maximum Service Temperature °C80 °C
Maximum Shackle Diameter (mm/cm/m)7.14 mm
Minimum Service Temperature °C-35 °C
Minimum Shackle Clearance - (mm/cm/m)9.53 mm
Size - Length (m)2.44 m
Size - Width (mm)82.00 mm
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
