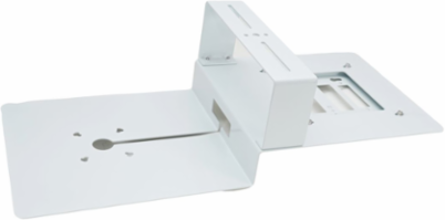

Hubbell ATS-02947 ATS-02947 (former catalog number ATS-DRPMNT-UNIV1-STGXTD-OOOP-C1-K)

MPN: ATS-02947
UPC: 662620438979
PPN: HBL-ATS-02947

$430.86

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

ATS-02947 (former catalog number ATS-DRPMNT-UNIV1-STGXTD-OOOP-C1-K). The AccelTex Solutions Staggered AP and Omni or Patch Antenna All-Thread Drop Mount allows an AP and an Antenna to be placed in one location using All-Thread or a Beam Clamp. This latest version has a new beam clamp mounting design to allow for better adjustment to meet the size of beam clamps. The range of beam sizes that the beam clamp can mount to is from 1.5" wide to 3" wide up to 5/8" thick.

Features

Opening for antenna leads
Antenna on top level with AP on bottom level OR antenna on bottom level with AP on top level
AP mounting plate can be adjusted to accommodate AP mounting
New beam clamp mounting design to allow for better adjustment to meet the size of beam clamps

Specifications

Key Specifications

Country of Origin	China
Description - Slang	AP and Antenna Drop Mount
Height	6.16 in
Weight	7.05 lb.
Application	Indoors
Class Code	A62
Harmonization Code	8302500000
Sub Class Code	A62A622
Base Unit of Measure	EA
Carton - SCC-14 Next Lower Level Sub Pack	00662620438979

Color	White
Dimensions	23.62 in x 10.24 in x 6.16 in
Length	23.62 in
Width	10.24 in
Compatibility	Arista C-230E;Arista C-460E;Aruba/HP AP-514;Aruba/HP AP-518;Aruba/HP AP-534;Aruba/HP AP-634;Aruba/HP AP-654;Aruba/HP AP-734;Cisco Catalyst 9120AXE;Cisco Catalyst 9120AXP;Cisco Catalyst 9130AXE;Mist AP32e;Mist AP43e;Mist AP47E
Freight Class Code	01312001
Image Actual Or Representative	A
Material	Steel
BOX SIZE	(in)
