Hubbell ATS-00716 ATS-00716 (former catalog number ATS-DRPMNT-UNIV1)
- MPN: ATS-00716
- UPC: 662620434889
- PPN: HBL-ATS-00716
CAD
$203.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

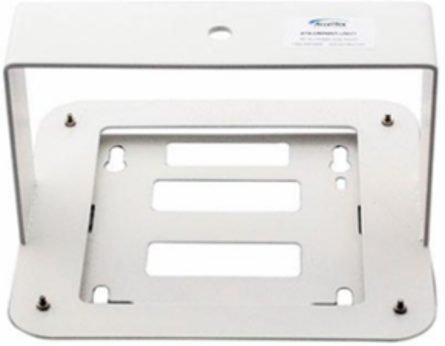

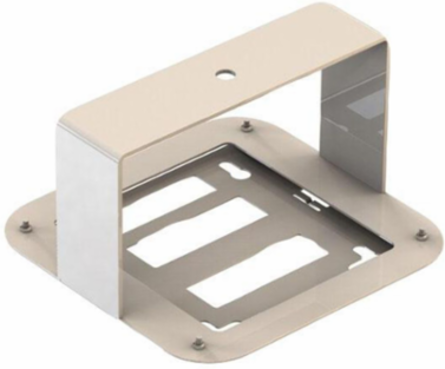

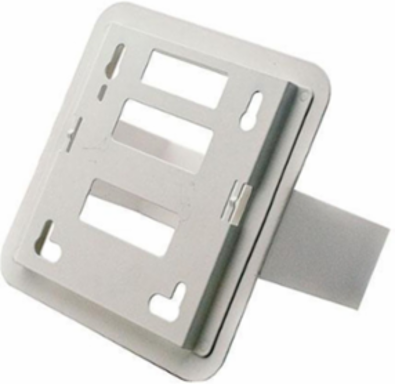

ATS-00716 (former catalog number ATS-DRPMNT-UNIV1). The AccelTex Solutions Universal All-Thread Drop Mount provides a unique solution to mount a Cisco, Aruba or other T-Bar mounted AP using All-Thread. The AP snaps into place by fitting the AP mounting feet into pre-defined keyholes in the mount or using the T-Bar mount supplied with the AP. This mount can be used to lower the height of the antenna and AP in a building with high ceilings or can even be placed above a suspended ceiling. All-Thread and fasteners not included.
Features
- All-Thread drop mount for T-Bar mounted APs
- Suitable for high ceilings or above suspended ceiling installations
- AP snaps securely into place with pre-defined keyholes or T-Bar mount
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Dimensions | 7.3 in x 7.1 in x 4.3 in |
| Length | 7.3 in |
| Application | Indoor Wi-Fi |
| Installation Type | 3/8" All Thread or Beam Clamp |
| Freight Class Code | 01312001 |
| Image Actual Or Representative | A |
| Indoor/Outdoor | Indoor |
| Technology | 802.11ac, 802.11ax, 802.11n |
| BOX SIZE | 16.250x24.750x9.500 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00662620434889 |
| Pallet - GTIN - Package | 70662620434888 |
| Pallet Length | 42.000 in |
| Pallet Width | 42.000 in |
| Color | White |
|---|---|
| Height | 4.3 in |
| Width | 7.1 in |
| Compatibility | Arista C-230;Arista C-330;Arista C-360;Arista C-460;Aruba/HP AP-515;Aruba/HP AP-535;Aruba/HP AP-555;Aruba/HP AP-615;Aruba/HP AP-635;Aruba/HP AP-655;Aruba/HP AP-735;Aruba/HP AP-755;Cisco Catalyst 9120AXI;Cisco Catalyst 9130AXI;Cisco Catalyst 9136i;Cisco CW9162;Cisco CW9164;Cisco CW9166;Cisco MR46;Cisco MR56;Cisco MR57;Mist AP33;Mist AP32;Mist AP43;Mist AP34;Mist AP24;Mist AP45;Mist AP47;Mist AP47D |
| Class Code | A62 |
| Harmonization Code | 8302500000 |
| Sub Class Code | A62A622 |
| Material | Steel |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 25.000 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 |
| Pallet Height | 37.000 in |
| Pallet Weight | 277.000 lb. |
