Hubbell ATS-04088 ATS-04088 (former catalog number ATS-APANTARTMNT-UNIV-CS)
- MPN: ATS-04088
- UPC: 662620446592
- PPN: HBL-ATS-04088
CAD
$1170.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

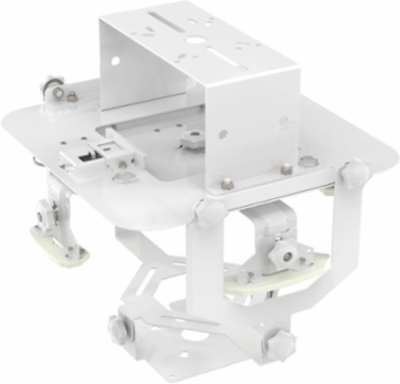

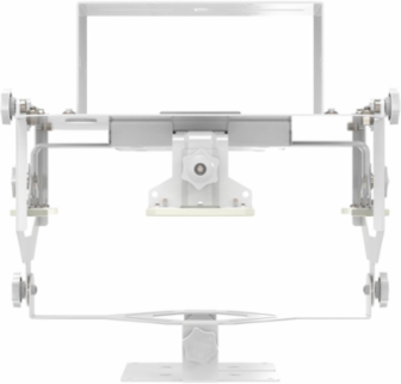

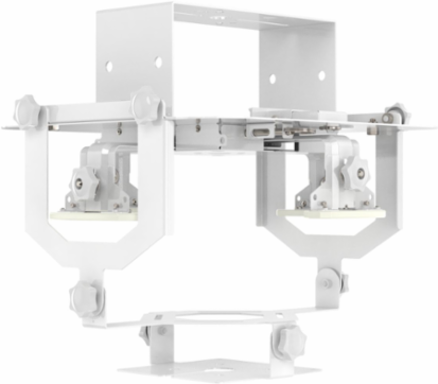

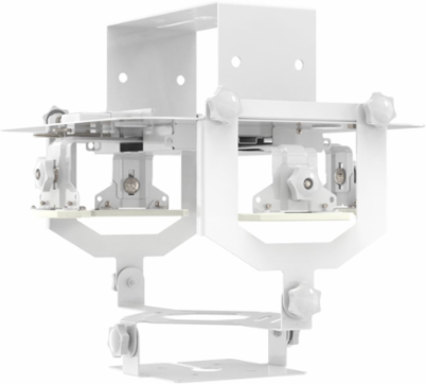

ATS-04088 (former catalog number ATS-APANTARTMNT-UNIV-CS). The AccelTex Solutions Universal AP and Antenna Clamp Mount system is designed to optimize space and reduce interference in high-density environments. This innovative mount features new adjustable clamping arms that provide universal AP compatibility, flexible mounting options (All-Thread, I-Beam Clamps, Conduit, Gangbox, etc), and easy installation.
Features
- New adjustable clamping arms
- Removable clamping bracket
- AP can be secured using cable or straps
- Includes integrated holes for securing mount to permanent building structure via chains or safety cable
- Compatible with various AP models due to adjustable mounting configuration
- Simple, one-person installation
- Flexible mounting options
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Description - Slang | Universal AP and Antenna Clamp Mount |
| Height | 12.76 in |
| Weight | 7.8 lb. |
| Application | Indoors;Outdoors |
| Class Code | A62 |
| Harmonization Code | 8302500000 |
| Sub Class Code | A62A622 |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 43.550 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 4 |
| Pallet Height | 48.000 in |
| Pallet Weight | 370.000 lb. |
| Color | White |
|---|---|
| Dimensions | 13.27 in x 13.23 in x 12.76 in |
| Length | 13.27 in |
| Width | 13.23 in |
| Compatibility | Arista C-460E;Aruba/HP AP-518;Aruba/HP AP-534;Aruba/HP AP-574;Aruba/HP AP-584;Aruba/HP AP-634;Aruba/HP AP-654;Aruba/HP AP-734;Aruba/HP AP-754;Cisco Catalyst 9120AXE;Cisco Catalyst 9130AXE;Cisco Catalyst 9124AXE;Cisco CW9163E;Cisco IW9167E;Mist AP32;Mist AP32E;Mist AP43E;Mist AP45E |
| Freight Class Code | 01312001 |
| Image Actual Or Representative | A |
| Material | Steel / ABS |
| BOX SIZE | 19.500x27.500x14.500 (in) |
| Carton - Number of Sub Packs | 4 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00662620446592 |
| Pallet - GTIN - Package | 70662620446591 |
| Pallet Length | 42.000 in |
| Pallet Width | 42.000 in |
