Homac GLE 300-48 ALUM 1 HOLE LUG 300 STRANDED
- MPN: GLE 300-48
- UPC: 075114394840
- PPN: T-B-GLE 300-48
- UNSPSC: 39121409
CAD
$71.18
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

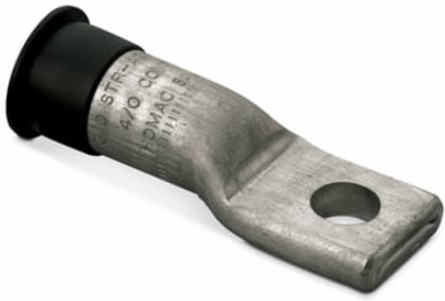

Aluminum 1-Hole Compression Lug for 300 kcmil Stranded or Compressed or Compact. Includes Oxide Inhibitor and Blue Cap. 3-3/4 inch long. Pad 1-1/4 inch wide x 1-5/16 inch long x 23/64 inch thick. (1) 9/16 inch Diameter Hole. Installing Die: CSA26. Tool 12T. Dual Rated for Aluminum and Copper Conductors
Features
- Use with Aluminum and Copper Conductors. Provide high strength and high conductivity. Prevents oxidation and keeps out moisture. Easy Identification
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Buy American Act (BAA) Compliant | Contact Manufacturer |
| Brand Name | Homac |
| Application | Compression Connector |
| Size | Length 3-3/4 in |
| Material | Aluminum |
| Insulation | None |
| American Recovery and Reinvestment Act (ARRA) Compliant | Contact Manufacturer |
|---|---|
| IGCC | 4543 |
| Standard | ANSI C119.4 / ANSI C119.4 |
| Connection | Compression |
| Wire Size | 300 kcmil |
| Finish | Bare |
