Blackburn

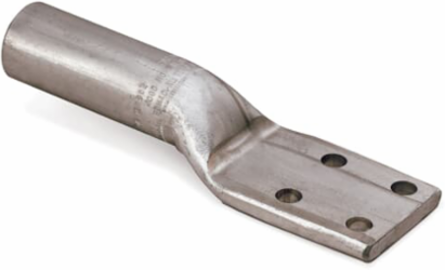

Blackburn AL 1272-4 N Aluminum Four-Hole NEMA Lug 1272 kcmil, 11-1/4 Inch Length

Aluminum Four-Hole NEMA Lug 1272 kcmil, 11-1/4 Inch Length
  • MPN: AL 1272-4 N
  • UPC: 783786693269
  • PPN: T-B-AL 1272-4 N
  • UNSPSC: 39121409

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$118.85/ EA

Description

Aluminum Four-Hole NEMA Lugs, 1272 kcmil AL-CU, installing dies 161, 727, 352, 579. Length 11-1/4 inch. Pad 3 inch wide x 3-5/8 inch long x 1/2 inch thick. (4) 9/16 inch Diameter Holes on 1-3/4 inch Center Spacing. Barrel 6-7/16 inch long x 1-31/32 inch Outside Diameter. Oxide Inhibitor, Yellow Cap.

Specifications

Additional Information

Application
General purpose lugs for Aluminum and Copper terminations.
Connection Type
Compression
Product Name
ELECTRICAL TERMINAL<1000V
Size
Length 11-1/4 inches
Standards
ANSI C119.4
Brand / LabelHomac
Effective Date20080619
Product TypeCompression Lug Four Hole
Special FunctionsDual-rated. Use with Aluminum and Copper conductors. Prefilled with oxide inhibitor to prevent oxidation and keep out moisture. All lugs marked with conductor sizes and die reference for easy identification.
Wire Size1272 kcmil

Classifications

WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4543 >> Wire connectors

Ordering

Country of Origin
United States (US)
Selling Unit of Measureeach
