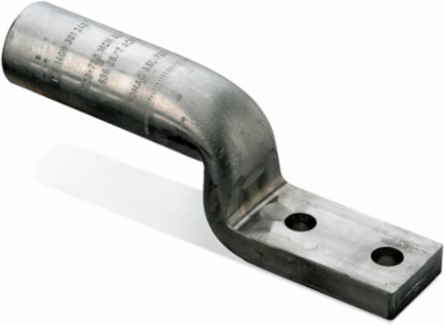

Blackburn ASL 4 NTN Tin Plated Aluminum 2-Hole Stacking Lug, Wire Size #4 AWG, Length 1-3/16 Inch
- MPN: ASL 4 NTN
- UPC: 783786696512
- PPN: T-B-ASL 4 NTN
- UNSPSC: 39121409
CAD
$43.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Tin Plated Aluminum Two-Hole NEMA Lugs - Stacking lug, Wire Size 4 Stranded AL-CU, installing dies 5/8, TU. Length 1-3/16 inch. Pad 7/8 inch wide x 3-1/16 inch long x 7/32 inch thick. (2) 9/16 inch holes on 1-3/4 inch centers. Barrel 1-1/2 inch long x 5/8 inch Outside Diameter. Oxide Inhibitor. Orange Cap.
Specifications
Additional Information
| Application | General purpose lugs for Aluminum and Copper terminations. |
|---|---|
| Connection Type | Compression |
| Product Name | ELECTRICAL TERMINAL<1000V |
| Size | Length 5-1/4 inches X 7/8 inch wide |
| Standards | ANSI C119.4 |
| Wire Size | #4 AWG |
| Brand / Label | Homac |
|---|---|
| Effective Date | 20080619 |
| Product Type | Compression Lug Two Hole Stacking |
| Special Functions | Made from Aluminum which provides high strength and high conductivity. Dual-rated. Use with Aluminum and Copper conductors. Prefilled with oxide inhibitor to prevent oxidation and keep out moisture. All lugs marked with conductor sizes and die reference for easy identification. |
| Surface Finishing | Tin Plated |
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4543 >> Wire connectors |
|---|
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
