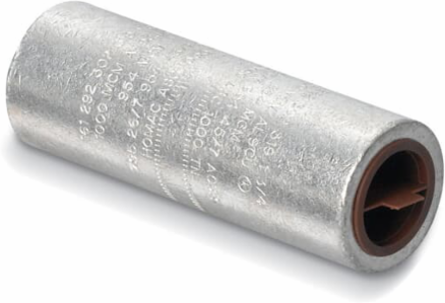

Blackburn ASC 1250-6.5 TN Tin-Plated Aluminum Compression Splice 1250 kcmil, 6-1/2 Inch Length
Blackburn ASC 1250-6.5 TN Tin-Plated Aluminum Compression Splice 1250 kcmil, 6-1/2 Inch Length
- MPN: ASC 1250-6.5 TN
- UPC: 783786973187
- PPN: T-B-ASC 1250-6.5 TN
- UNSPSC: 39121449
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$149.51/ EA
Description
Tin Plated Aluminum Straight Compression Splice for Aluminum and Copper Conductors, 1250 kcmil AL-CU. Installing Dies 161, 727 , 352, 1 7/8. Length 6-1/2 inch . Outside Diameter 1-31/32 inch. Oil Stop. Oxide Inhibitor. Yellow Caps.
Specifications
Additional Information
- Application
- Cable Splice
- Connection Type
- Compression
- Insulation Material
- None
- Product Name
- ELECTRICAL CONNECTOR,>1000V
- Size
- 6.5 inch
- Standards
- ANSI C119.4
Brand / LabelHomac
Effective Date20100429
Number of Conductors2
Product TypeCompression Splice Service Entrance Insulated
Special FunctionsDual Rated for Aluminum or Copper Conductors. Prefilled with Oxide Inhibiting Compound. Solid Center Stop ensures porper Cable insertion.
Surface FinishingTin-Plated
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4669 >> Wire or cable compression splice
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
