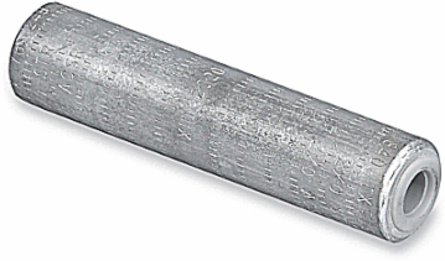

Blackburn X 1 U 2020-10 Aluminum Service Entrance Compression Splice 2/0 to 2/0, 10 Inch
- MPN: X 1 U 2020-10
- UPC: 078378675939
- PPN: T-B-X 1 U 2020-10
CAD
$72.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Aluminum Compression Splice, 2/0 to 2/0, Aluminum - Copper, Die 840
Documentation & Downloads
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121409 Wire connectors
- Brand Name
- Blackburn
- Special Features
- Constructed from Aluminum for High Conductivity. Solid Center Barriers enable quick wire positioning, proper distribution of inhibitor around the wire and current equalization on stranded conductors. Prefilled with oxide inhibitor to prevent oxidation and keep out moisture. Splices marked with strip lengths, die codes and compression locations, providing easy identifications for easy installation.
- Standard
- RUS Accepted. Complies with ANSI C119.4
- Connection
- Compression/Crimp
- Material
- Aluminum
- Insulation
- None
- Environmental Conditions
- All Seasons / Conditions
IGCC4543 Wire connectors
TypeService Entrance Compression Splice
ApplicationIdeal for large residential and commercial service drops
Size10 inches
Wire Size2/0 to 2/0
FinishBare
Temperature Ratingup to 90 Degrees C.
Packaging
- Outer Quantity
- 25
- Weight Uom
- 0.58 lbs. Each
Outer Dimensions (inches)12.437x12.437x3.687
