Blackburn

Blackburn AC 250 TN ALUM COMP SPLICE 250KCMIL 50 PC

ALUM COMP SPLICE 250KCMIL 50 PC
  • MPN: AC 250 TN
  • UPC: 783786691692
  • PPN: T-B-AC 250 TN
  • UNSPSC: 39121449

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$89.08/ EA

Description

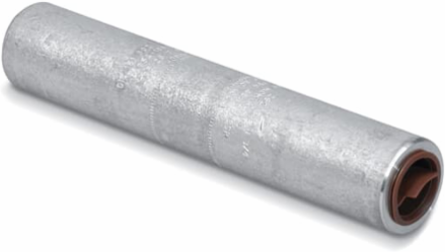

Tin-Plated Aluminum Compression Splice for Aluminum and Copper, 4/0 Stranded, 250 kcmil, 4/0 ACSR AL9CU. Dies TX, 76, 249, 840, 11A. Length 5-1/4 inch. Outside Diameter 29/32 inch. Oil Stop. Oxide Inhibitor. Red Caps.

Specifications

Additional Information

Application
Cable Splice
Connection Type
Compression
Insulation Material
None
Product Name
ELECTRICAL SPLICE<1000V
Size
5-1/4 inch long
Standards
ANSI C119.4
Brand / LabelHomac
Effective Date20080619
Number of Conductors2
Product TypeCompression Splice
Special FunctionsDual Rated for Aluminum or Copper Conductors. Prefilled with Oxide Inhibiting Compound.
Surface FinishingTin-Plated

Ordering

Country of Origin
United States (US)
Selling Unit of Measureeach

Classifications

WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4669 >> Wire or cable compression splice
