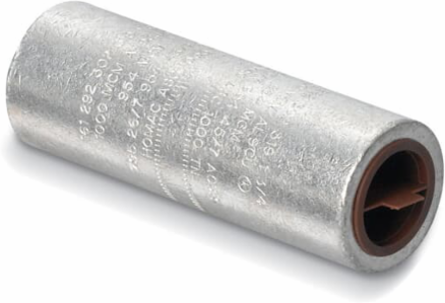

Blackburn ASC 300 TN Aluminum Compression Splice 3-1/8 Inch, Tin-Plated, Dual Rated for AL/CU
- MPN: ASC 300 TN
- UPC: 783786695959
- PPN: T-B-ASC 300 TN
- UNSPSC: 39121449
CAD
$63.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Tin Plated Aluminum Straight Splices, 300 kcmil AL9CU UL listed, 266.8 kcmil, 150 MM2, ACSR 266.8 (18/1), 350 Compact, installing dies TH, 87H, 251, 470, 12A, 1. Length 3-1/8 inch x 1 inch Outside Diameter. Oil Stop. Oxide Inhibitor. Blue Caps.
Specifications
Additional Information
- Application
- Cable Splice
- Connection Type
- Compression
- Insulation Material
- None
- Product Name
- ELECTRICAL SPLICE<1000V
- Size
- 3-1/8 inch
- Standards
- ANSI C119.4
Brand / LabelHomac
Effective Date20080619
Number of Conductors2
Product TypeCompression Splice
Special FunctionsDual Rated for Aluminum or Copper Conductors. Prefilled with Oxide Inhibiting Compound. Solid Center Stop ensures porper Cable insertion.
Surface FinishingTin-Plated
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4669 >> Wire or cable compression splice
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
