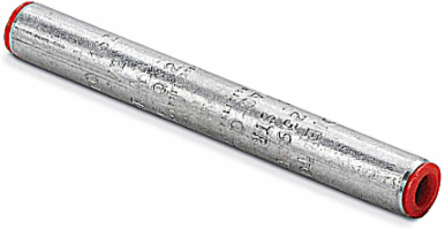

Blackburn Q 2 A 7 Aluminum Full-Tension Compression Splice, 4-1/2 Inch Long, for #4 Stranded Conductor
- MPN: Q 2 A 7
- UPC: 783786744749
- PPN: T-B-Q 2 A 7
CAD
$57.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Aluminum Full-Tension Compression Splices - For Aluminum Conductors, wire size Stranded 2, length 4-1/2 inch, installing dies - 243,TU,52,518,8A,BG.
Documentation & Downloads
Specifications
Packaging
- Inner Quantity
- 100
- Outer Dimensions (inches)
- 1x1x1
Outer Quantity400
Weight Uom0.07 lbs. Each
North American Specifications (UNSPSC)
- UNSPSC
- 39121449 Wire or cable compression splice
- Brand Name
- Blackburn
- Special Features
- Prefilled with Oxide Inhibitor to prevent oxidation and keep out moisture. Designed to develop 90 percent or more of the conductors rated strength. Sleeves have an internal taper that acts as a funnel like entrance for easy insertion of conductors. Provides stress relief on the conductor strands upon compression. Marked with Conductor Size and Die Reference for Easy Identification
- Standard
- ANSI C119.4
- Connection
- Crimp/Compression
- Number Of Conductors
- 2
- Insulation
- None
IGCC4669 Wire or cable compression splice
TypeAluminum Full-Tension Compression Splice for Aluminum Conductors
ApplicationFor High Conductivity
Size4-1/2 inch long
Conductor Range#4 Stranded
MaterialAluminum
