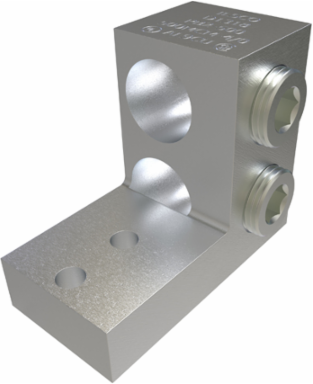

ILSCO PB2-500 Aluminum Panelboard Lug, Dual Rated, Conductor Range 500-4/0, 2 Ports, 2 Holes, 1/4in Bolt Size, 11/16in Hole Spacing, Tin Plated, UL, CSA

Aluminum Panelboard Lug, Dual Rated, Conductor Range 500-4/0, 2 Ports, 2 Holes, 1/4in Bolt Size, 11/16in Hole Spacing, Tin Plated, UL, CSA
  • MPN: PB2-500
  • UPC: 783669184266
  • PPN: ILC-PB2-500

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$154.35/ EA

Description

Aluminum Panelboard Lug, Dual Rated, Conductor Range 500-4/0, 2 Ports, 2 Holes, 1/4in Bolt Size, 11/16in Hole Spacing, Tin Plated, UL, CSA

Specifications

Voltage

Voltage Rating
35 kV

Dimensions

Dimension G (IN)
0.25
Drive Type Main
Internal Hex
Height (mm)
60.325
Mounting Hole Diameter (IN)
0.281
Mounting Hole Spacing (IN)
0.688
Tang Length (IN)
1.688
Tang Thickness (IN)
0.625
Tang Width (IN)
1.438
Weight BX (LB)
2.1068
Width (mm)
36.5252
Drive Size Main3/8
Height BX (IN)2.25
Length (mm)73.8124
Mounting Hole Diameter (mm)7.1374
Mounting Hole Spacing (mm)17.4752
Tang Length (mm)42.8752
Tang Thickness (mm)15.875
Tang Width (mm)36.5252
Width BX (IN)5

Testing Standards

CSA File Number
LR-29601
Prop65 Compliance
This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
UL / CULUS Specification
UL 486A/B Listed
CSA StandardC22.2 No. 65-03
ROHS IndicatorIND
UL File NumberE6207

Additional Class Attributes

Connection
Mechanical
Mounting Hole Type
Thru
Number of Mounting Holes
2
Number of Ports / Wireways
2
Contains DE-OX®No
Number of Conductors2
Number of Poles1
Wire OrientationPerpendicular

Material and Finish

Conductor Material
Aluminum, Copper
Material
Aluminum
Wire Binding Hardware Material
Aluminum
Connector FinishTin
Wire Binding Hardware FinishTin

Conductor Ranges

Conductor Range AL Stranded (Primary, run, main, line)
500 kcmil - 4/0 Str
Conductor Range CU Stranded (Primary, run, main, line)500 kcmil - 4/0 Str

Additional Technical Specifications

Conductor Type
Stranded

General

Bag Quantity
1
Direct Burial
No
NEMA Code
S-588-3
Carton Quantity DescriptionSTD PACK QTY 3
Dual RatedYes
UPC Code78366918426

Specifications

Height
2.375 in | 60.325 mm
Weight
0.402 lbs
Length2.906 in | 73.8124 mm
Width1.438 in | 36.5252 mm

Bolt and Screw Sizes

Mounting Bolt/Stud Size
1/4
Wire Binding Screw Size
3/4
Number of Wire Binding Screws per Port1
Wire Binding Torque375

Color

Color
Silver

Environment and Temperature

Temperature Rating
90°C

Downloads
