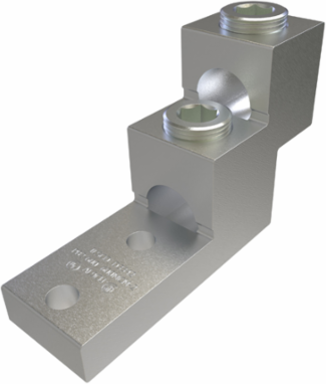

ILSCO PB2-600 Aluminum Panelboard Lug, Dual Rated, Conductor Range 600-2, 2 Ports, 2 Holes, 3/8in Bolt Size, 1-3/8in Hole Spacing, Tin Plated, UL, CSA
- MPN: PB2-600
- UPC: 783669195255
- PPN: ILC-PB2-600
CAD
$185.22
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Aluminum Panelboard Lug, Dual Rated, Conductor Range 600-2, 2 Ports, 2 Holes, 3/8in Bolt Size, 1-3/8in Hole Spacing, Tin Plated, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
- Height
- 2.96 in
- Weight
- 0.724 lbs
Length4.91 in
Width1.5 in
Voltage
- Voltage Rating
- 35 kV
Dimensions
- Dimension G (IN)
- 0.375
- Drive Size Main
- 1/2
- Height BX (IN)
- 3.125
- Mounting Hole Diameter (IN)
- 0.406
- Mounting Hole Spacing (IN)
- 1.375
- Tang Length (IN)
- 2.35
- Tang Thickness (IN)
- 0.625
- Tang Width (IN)
- 1.5
- Weight BX (LB)
- 0.8576
Dimension G (mm)9.525
Drive Type MainInternal Hex
Mounting Bolt/Stud Size (mm)965.2
Mounting Hole Diameter (mm)10.3124
Mounting Hole Spacing (mm)34.925
Tang Length (mm)59.69
Tang Thickness (mm)15.875
Tang Width (mm)38.1
Width BX (IN)3.875
Testing Standards
- CSA File Number
- LR-29601
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL / CULUS Specification
- UL 486A/B Listed
CSA StandardC22.2 No. 65-03
ROHS IndicatorIND
UL File NumberE6207
Additional Class Attributes
- Connection
- Mechanical
- Mounting Hole Type
- Thru
- Number of Mounting Holes
- 2
- Number of Ports / Wireways
- 2
Contains DE-OX®No
Number of Conductors2
Number of Poles1
Wire OrientationPerpendicular
Material and Finish
- Conductor Material
- Copper, Aluminum
- Material
- Aluminum
- Wire Binding Hardware Material
- Aluminum
Connector FinishTin
Wire Binding Hardware FinishTin
Conductor Ranges
- Conductor Range AL Stranded (Primary, run, main, line)
- 600 kcmil - 2 Str
Conductor Range CU Stranded (Primary, run, main, line)600 kcmil - 2 Str
Additional Technical Specifications
- Conductor Type
- Stranded
General
- Bag Quantity
- 1
- Direct Burial
- No
- NEMA Code
- S-588-3
Carton Quantity DescriptionSTD PACK QTY 1
Dual RatedYes
UPC Code78366919525
Bolt and Screw Sizes
- Mounting Bolt/Stud Size
- 3/8
- Wire Binding Screw Size
- 15/16
Number of Wire Binding Screws per Port1
Wire Binding Torque500
Color
- Color
- Silver
Environment and Temperature
- Temperature Rating
- 90°C
