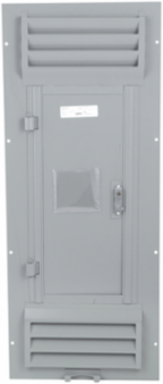

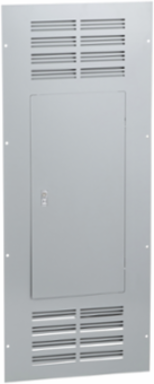

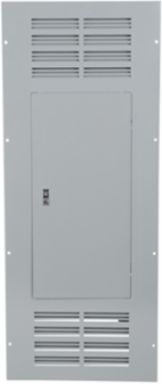

Square D NC50VS Surface Ventilated Enclosure Cover 20 Inch x 50 Inch, NEMA 1, Steel
- MPN: NC50VS
- UPC: 785901798927
- PPN: SCH-NC50VS
CAD
$328.53
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
NQ and NF Panelboards applications include commercial buildings, industrial buildings, data centers, stadiums, and offices. NQ and NF Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. These panelboards have many different options for your enclosure box and its accessories. This enclosure cover is a ventilated steel Type 1 for surface mount NF and NQ panelboards. This cover is for a 20 inch width x 50 inch height box. NQ and NF enclosures are UL listed for use in the USA and Canada.
Features
- Engineering-matched specifically for Schneider Electric Square D NQ and NF series lighting and appliance panelboards, this cover provides an identical factory-original match. It is designed to seamlessly mount onto a 20-inch wide by 50-inch high commercial enclosure box, ensuring field swap-outs or new installations interface perfectly without modifying or drilling into your structural layout.
- Engineered with a NEMA Type 1 rating, this heavy-duty steel enclosure cover provides dependable indoor physical protection against airborne debris, dust particles, and accidental personal contact. It is ideal for institutional utility closets, commercial electrical rooms, and manufacturing facilities where robust structural safety and physical access control are non-negotiable.
- Configured specifically as a surface cover plate, this replacement trim sits flush over surface-mounted panels without interfering with adjacent framing or structural masonry. It completely covers the internal electrical framework, ensuring quick and clean servicing access for field electricians maintaining critical commercial infrastructure.
- Rigorously tested and certified to carry official cULus structural listings, this authentic Square D component ensures a flawless inspection pass on commercial project closeouts. It supports configurations for 200% rated neutrals for non-linear load profiles, meaning it delivers full code compliance for modern, modern digital environments prone to harmonic distortion.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
Physical Attributes
| Color | Gray |
|---|
Complementary Attributes
| Line Rated Current | 400 A, 600 A |
|---|
Important Information Attributes
| Carbon Footprint Of The Distribution Phase [A4] | 5.953170695315466, 6 kg CO2 eq. |
|---|---|
| Carbon Footprint Of The Installation Phase [A5] | 0.04754245473994009, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2026-03-26 |
| Stocking Flag | N |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2532 |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Cover Type | surface cover |
| Energy Efficiency Optimized | False |
| Product Or Component Type | surface cover |
| Software Version | v6.2.5-6 |
| Tightening Torque | Cover 10...12 lb.in |
| Type Of Front Plate | ventilated |
| Database Version | 2024-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years. |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Low voltage; 2020; United States, US |
| Energy Model - Use [B6] | Electricity origin |
| Recyclability Potential In % | 97 |
| Width Nominal | 20 in |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8538908160 |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 16 kg CO2 eq., 16.039231647953418 |
|---|---|
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 99 kg CO2 eq., 99.29149799535261 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Enclosure Material | steel |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 121 kg CO2 eq. |
| Pep Code | ENVPEP2509015EN |
| Pep Verification Date | 2025-09-01 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| Height Nominal | 50 in |
| Certificate Agency | cULus |
| Package Weight(Lbs) | 12.474 kg |
| Warranty (In Months) | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 121.33144279336143 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2509015EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2509015EN |
| Nema Degree Of Protection | NEMA 1 |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-09-01 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
General Attributes
| Product Or Component Type | surface cover |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
